CY1000 Flat Fully Automatic Deburring Machine fits sheet metal lines of laser cutting & CNC punching, finishing uniform deburring and chamfering on surfaces, contours and hole edges in one pass. Its flexible grinding won’t damage protective film and coating. Equipped with Leadshine visualized control system for adjustable parameters, the zoned turbo vacuum chuck firmly holds special-shaped parts, with optional magnetic adsorption for lower power use. Custom imported wire brushes and dust collector interface are available. It largely replaces manual grinding to cut labor cost, backed by 6 complete after-sales services including 1-year warranty and lifetime technical support.

6 SERVICES/ABOUT US

1.ONE-YEAR WARRANTY                                     2.REPAIR SERVICE GUARANTEE

3.LIFETIME SUPPORT                                           4.AFTER-SALES SERVICE

5.LABOR-FREE FOR REPLACEMENT PART        6.FREE TRAINING

Purpose of Equipment

It matches production lines for deburring and edge finishing after laser cutting, CNC punching, CNC machining and other mechanical processing. Adopting linear processing mode, multiple sets of wire brushes rotate on their own axes while revolving alternately. In one single pass, the machine evenly removes burrs on workpiece surfaces, contour edges and hole rims, and achieves consistent chamfering simultaneously.

Performance & Characteristics | Deburring Machine

Flexible Processing, No Damage to Surface & Protective Film

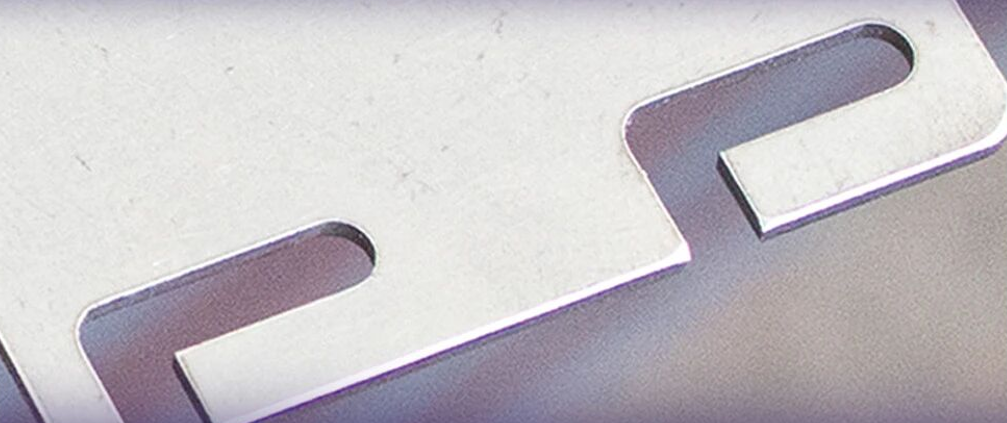

It performs precision deburring and radius chamfering on both inner and outer contours. Thanks to flexible processing technology, it will not scratch the surface or damage the protective film of sheet metal parts that have been polished, brushed or laminated.

Effectively Cut Labor Costs & Boost Production Efficiency

It replaces manual grinding solutions using files, scrapers, electric or pneumatic tools. The machine delivers more uniform workpiece finishing and safer operation, which effectively reduces labor expenditure and raises overall production efficiency.

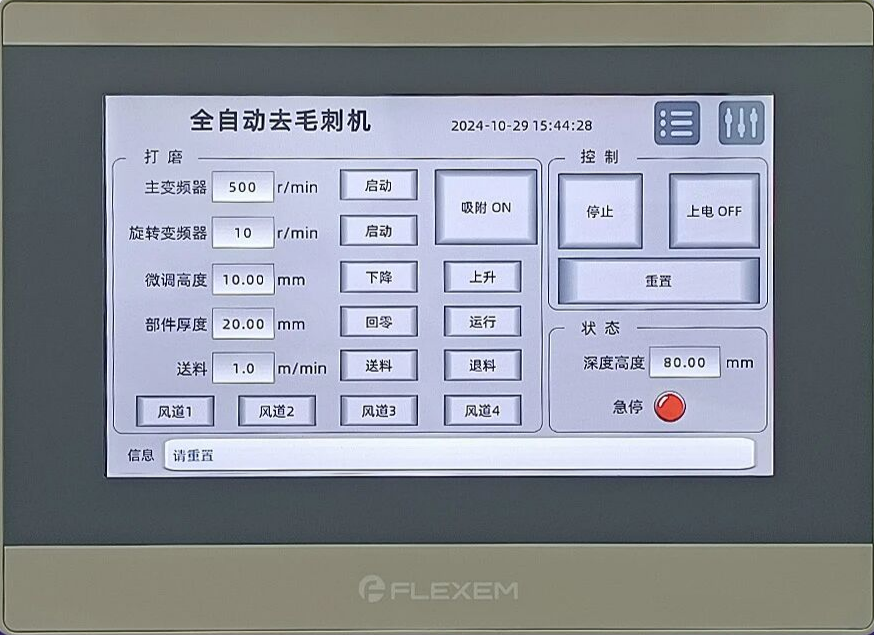

Leadshine Control System, Visualized & Freely Adjustable Parameters

Grinding and stroke parameters can be visualized and freely adjusted. The machine only polishes workpiece contours and sharp edges without scratching the base surface, which effectively protects the workpiece coating. It is suitable for workpieces with surface protection requirements, such as galvanized sheets, laminated aluminum sheets, copper sheets and stainless steel plates. The operation interface is simple and user-friendly, enabling quick and convenient adjustment of the grinding allowance.

Zoned Adsorption Design Delivers Powerful Adsorption Force

Equipped with turbo vacuum adsorption technology, the machine firmly holds workpieces in place during grinding. It supports grinding of bent and special-shaped workpieces after adsorption, greatly expanding processing range and production efficiency. The system prevents pressure loss or failure caused by blockages. A special magnetic adsorption system is also optional. When magnetic fixation is applicable to workpieces, it drastically cuts equipment power consumption, achieves energy conservation and environmental protection, and lowers production costs.

Customizable Imported Wire Brushes to Meet Special Processing Demands

This machine supports standard consumables available on the market. Custom imported wire brushes are also optional to boost production efficiency and fulfill special processing requirements of various products.

Reserved Dust Collector Interface to Extract Dust & Metal Filings

The machine is reserved with an interface for installing dust collectors to suck up dust, metal filings and debris generated during operation. Users can match an independent dust removal unit or connect to the factory’s existing dust extraction system.

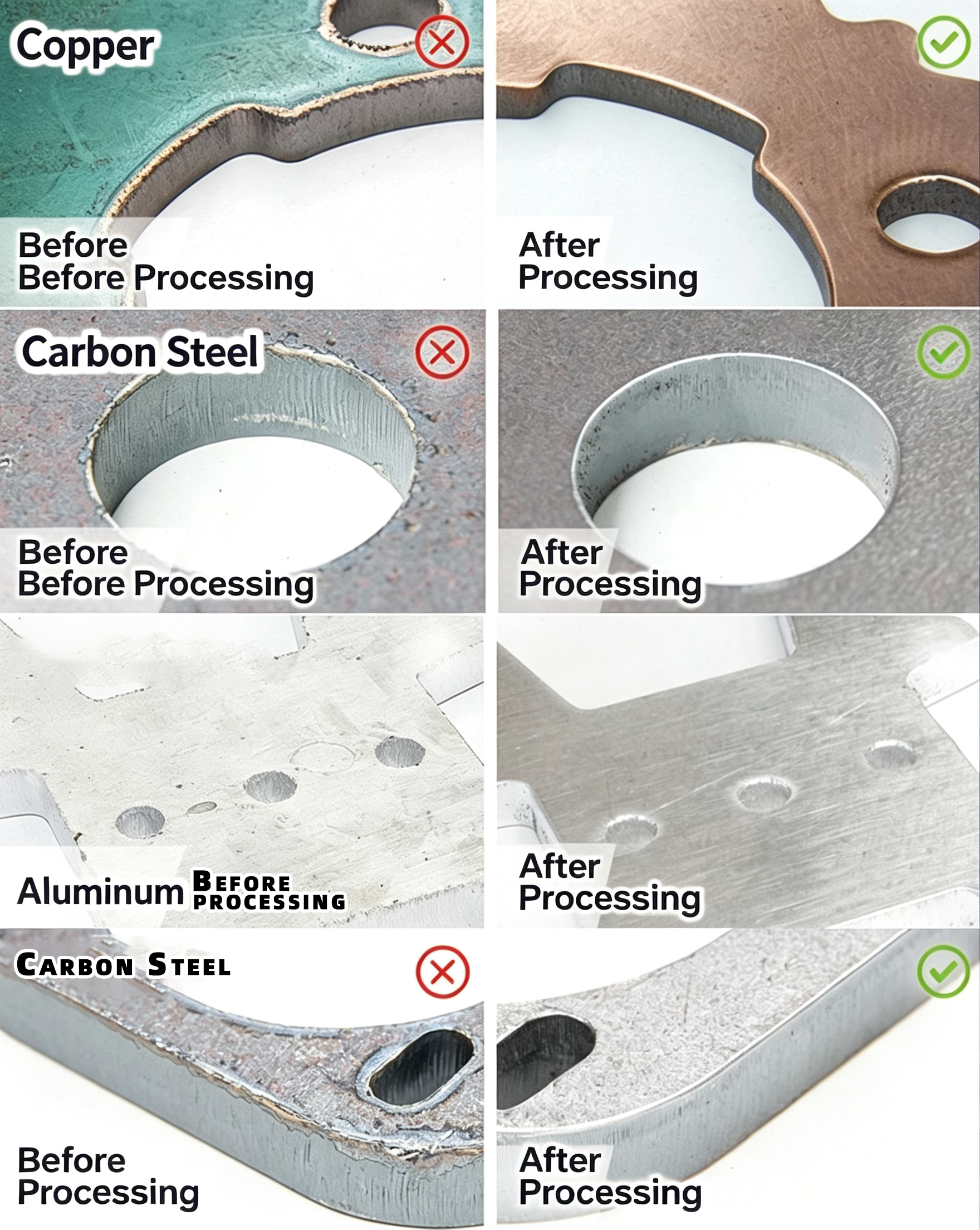

Processing Effect Display
