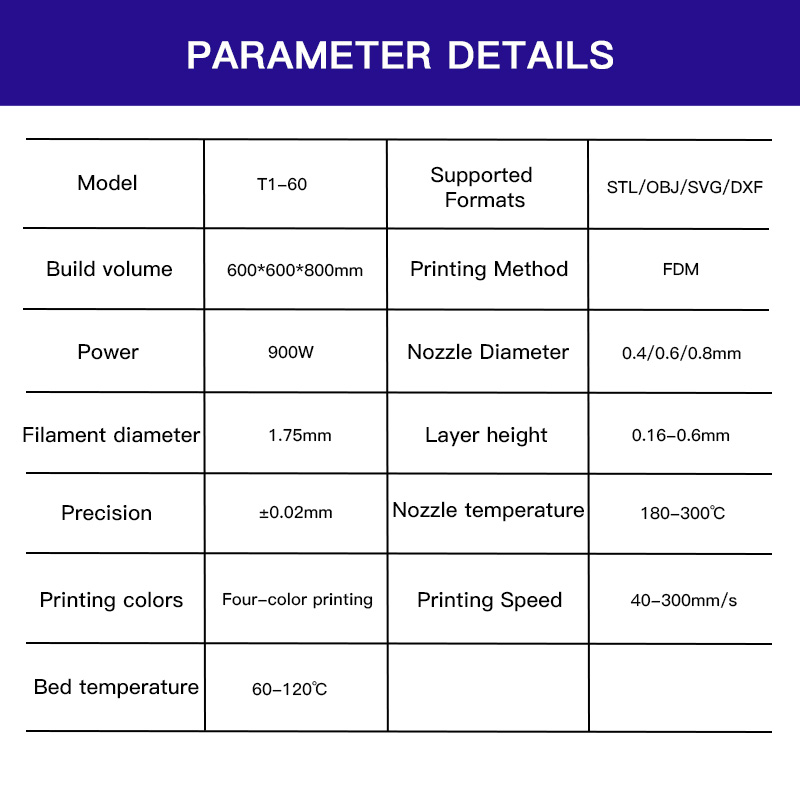

The integrated compact industrial 3D printer CYT1-60 features a 600×600×800mm build volume with identical core specifications as CYT1-100. Equipped with 64-bit mainboard, full-metal high-temperature nozzle, anti-warp constant-temperature bed, active dehumidification cabinet and thickened rigid frame, it comes with user-friendly signage software and weather-resistant PETG filament. Fully CE-certified and backed by comprehensive after-sales service, it specializes in mass printing of small & medium light letters and craft sculptures.

6 SERVICES/ABOUT US

1.ONE-YEAR WARRANTY                                     2.REPAIR SERVICE GUARANTEE
3.LIFETIME SUPPORT                                           4.AFTER-SALES SERVICE
5.LABOR-FREE FOR REPLACEMENT PART        6.FREE TRAINING

CORE ADVANTAGES OFTHE EQUIPMENT

01Main control system Upgrade

Our next-generation mainboard is built on a 64-bit high-speed processor, delivering 3 to 5 times the computing efficiency compared to the previous model. The system maintains stable path calculation even during high-speed printing, effectively reducing issues such as vibration and layer shifting.

02High-temperature stable nozzle assembly

Adopting an all-metal hotend structure, it consistently supports operating temperatures of 260–380°C and is compatible with high-temperature materials such as PETG and ABS. It ensures stable extrusion during long-term mass production, preventing clogging and material leakage. The cold end of the nozzle features a dual-ball-bearing fan structure, which improves heat dissipation efficiency and prevents heat creep. This enables long-term operation without overheating or clogging, making it suitable for 7×24 hour continuous printing.

03Independent temperature control heating module

The temperature variation across the entire heated bed is controlled within ±3°C. Compared to conventional heated beds, the advantages are reflected in: ・No warping at the edges of printed parts

04All-metal auto leveling structure

The industrial-grade metal structure delivers 5 times greater durability. Built-in high-sensitivity sensors automatically detect tiny height variations on the platform and generate a height compensation model, ensuring stable success for large-area printing. The combination of dual lead screws and linear guides guarantees Z-axis precision, providing the hardware foundation for stable auto leveling performance. Plastic leveling components are prone to deformation and aging, leading to inaccurate leveling. In contrast, the all-metal structure maintains its precision even after years of use.

05 Integrated Structural Design

The moisture-proof box features an integrated assembly structure with the equipment, eliminating the need for an external power supply or standalone unit. This reduces wiring and installation steps while lowering operational failure rates. Compared to conventional external racks, the overall structure offers greater stability and is more suitable for long-term continuous production.

06 Active Dehumidification Module

Equipped with a built-in active dehumidification device that continuously absorbs ambient moisture, ensuring the filament remains at low humidity during printing. For hygroscopic materials, it effectively eliminates issues including bubbles, inconsistent layer adhesion, embrittlement, filament breakage, and surface haze. The sealed moisture-proof chamber accommodates multiple rolls simultaneously, with a transparent window for real-time material monitoring.

07 Thickened Frame Structure Design

Featuring a thickened frame and 5mm linear rails, the platform remains stable without deflection or resonance even at high speeds, ensuring exceptional path accuracy for large-format printing. Linear guides are employed on both the X-axis and Y-axis.

ADVANTAGES OF OUTDOOR MATERIALS

SOFTWARE AND OPERATION ADVANTAGES

01 2D design import

Supports AI, CDR, and DXF vector files, compatible with mainstream sign design software.

02 2D to 3D conversion

Convert 2D vector files into printable 3D letter models. Height, thickness, and edge style are adjustable.

03 Easy print setup

Auto slicing with preset parameters, optimized for PETG sign materials.
