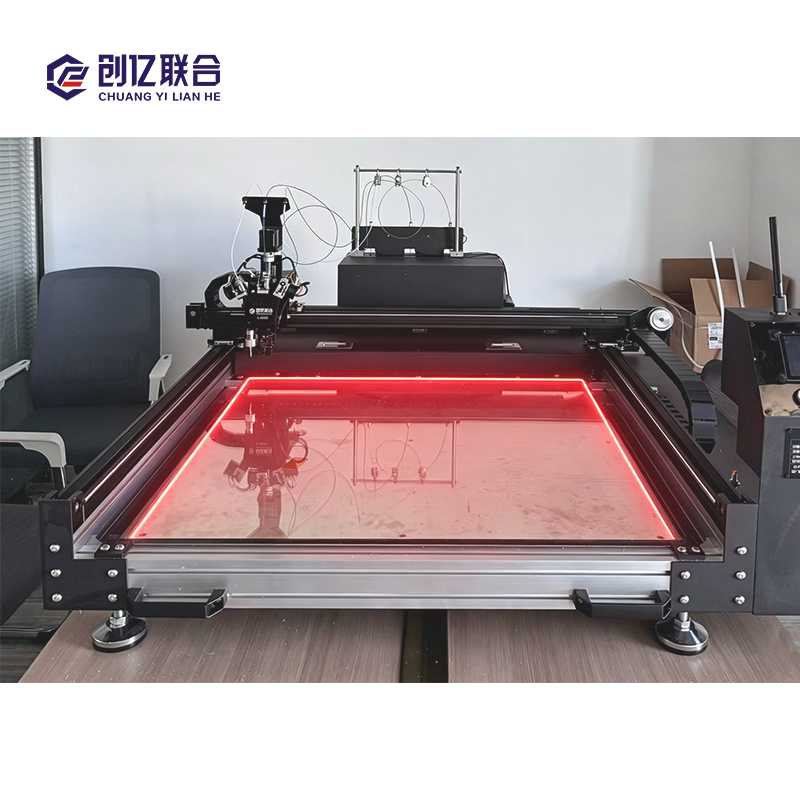

Chuang Yi Lian He CYL1 Series industrial signage 3D printer is custom-built for mass manufacturing advertising channel letter shells, boosting printing efficiency by 30% while greatly cutting product reject rates.

Fitted with a 64-bit high-speed main control board, all-metal high-temperature extruder nozzle, independently zoned temperature-controlled hot bed, active filament dehumidification unit and industrial closed-loop servo motion system, this printer features a 9-point automatic leveling structure paired with four-corner guide pillars, delivering stable 7×24-hour uninterrupted mass production capacity.

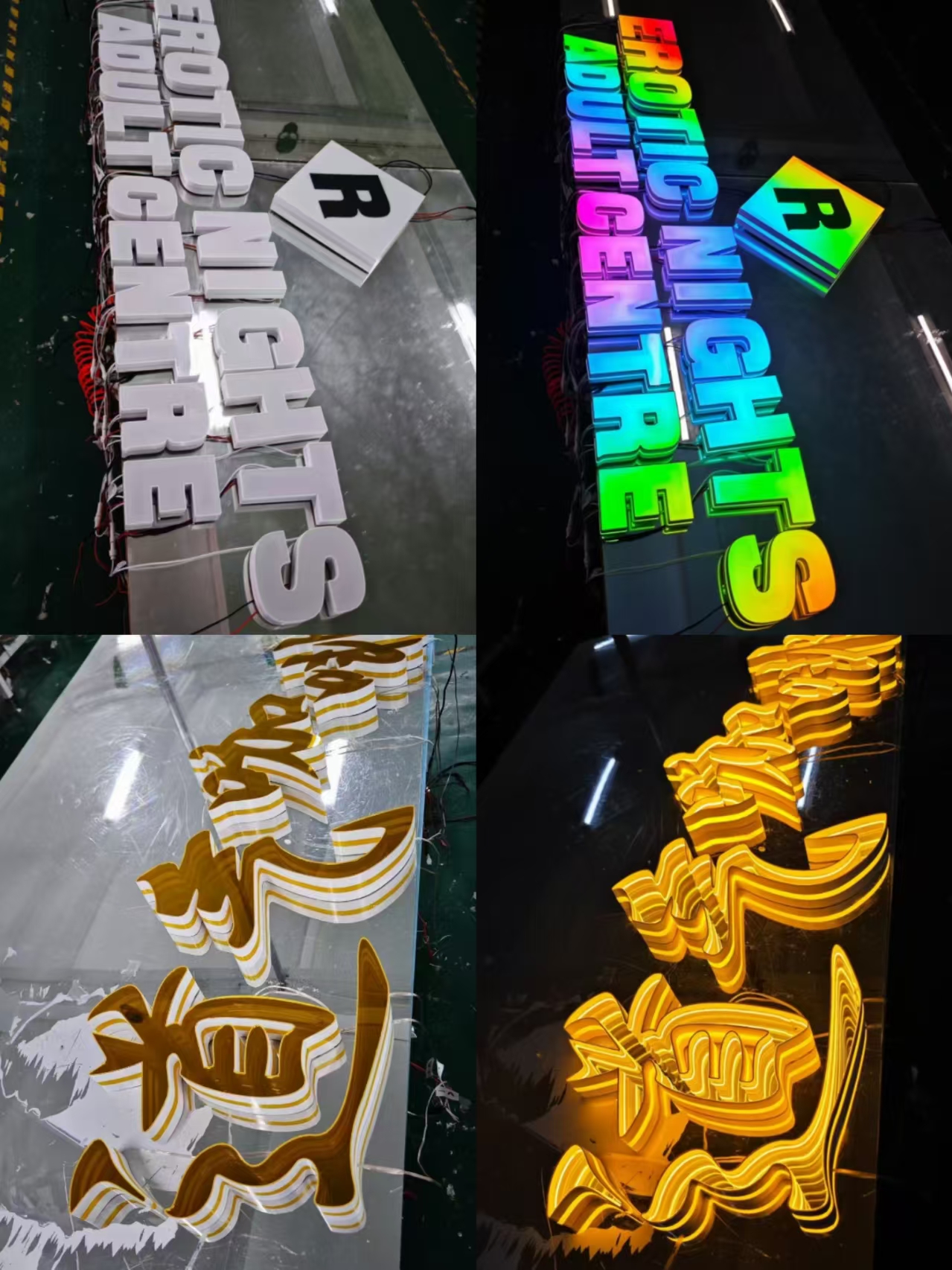

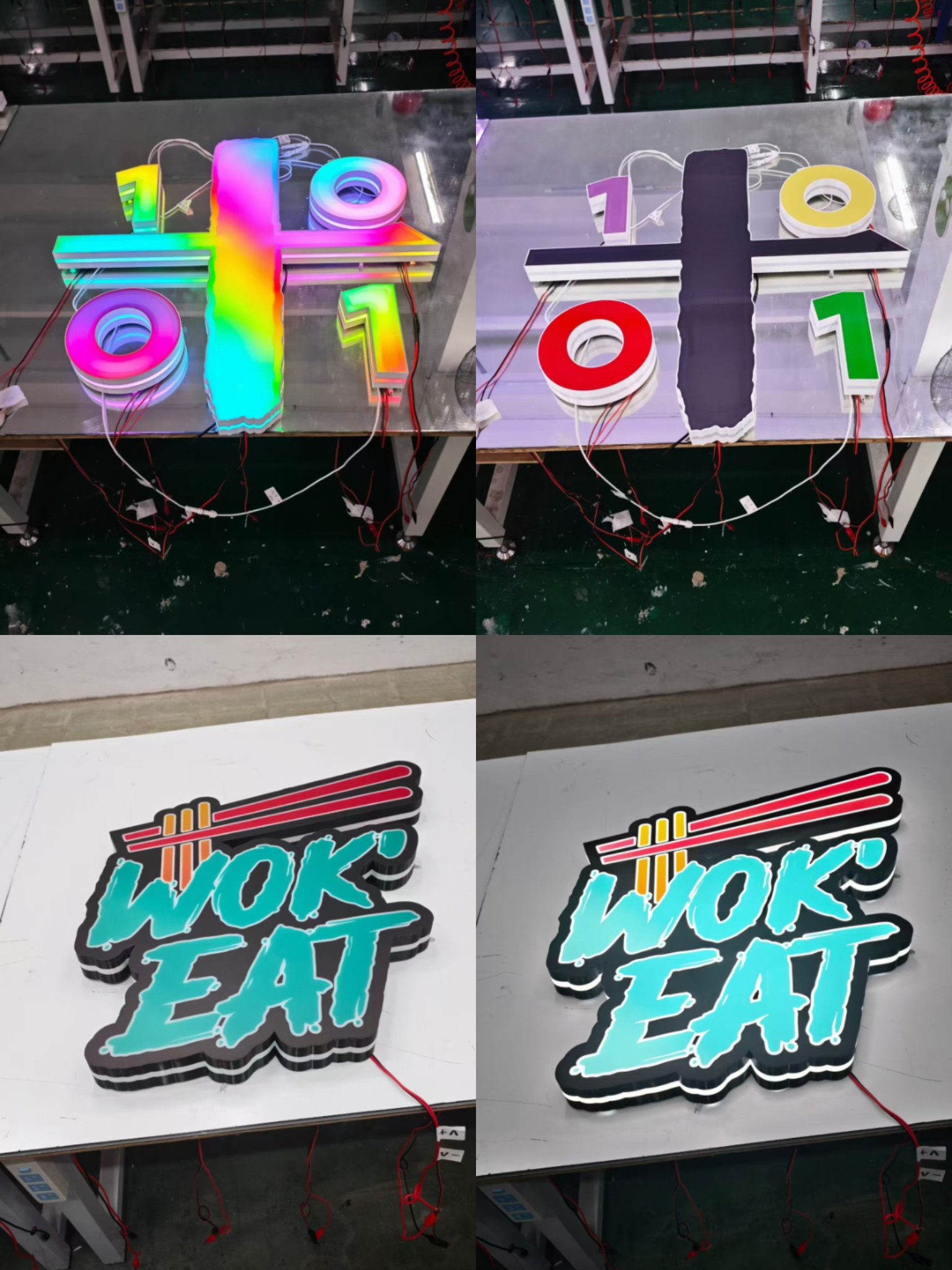

It supports direct import of advertising vector files like AI, CDR and DXF, enabling one-click conversion from 2D drafts to 3D channel letter models. Pre-calibrated printing parameters tailored for outdoor PETG filament remove tedious 3D modeling work and lower the operation learning curve for new operators. Compatible with PETG, ABS, PLA, TPU and more consumables, it realizes large-format integrated printing and outputs letter shells with even wall thickness, crisp edges and smooth burr-free surfaces, ideal for various signage styles including borderless letters, wrapped letters and grid glue-filled letters.

This product line covers two variants: standard CYL1-120 and upgraded CYL1-120PRO equipped with an integrated curing platform. Both models adopt the same core hardware, printing performance and software functions. The proprietary built-in bottom curing platform of CYL1-120PRO allows simultaneous printing and curing without workpiece handling transfer, perfectly matching high-volume production assembly lines of large sign manufacturers.

We offer comprehensive full-cycle after-sales support: 1-year full machine warranty, 48-hour rapid maintenance response, lifelong free technical guidance, free operational training and free labor service for spare parts replacement to fully safeguard your production operations.

6 SERVICES/ABOUT US

1.ONE-YEAR WARRANTY                                     2.REPAIR SERVICE GUARANTEE

3.LIFETIME SUPPORT                                           4.AFTER-SALES SERVICE

5.LABOR-FREE FOR REPLACEMENT PART        6.FREE TRAINING

EQUIPMENT DETAIL DISPLAY

01Our next-generation motherboard is built on a 64-bit high-speed processor, delivering 3 to5 times greater computing efficiency compared to previous models. The system maintainsstable path calculation even during high-speed printing, effectively reducing issues such asvibration and layer shifting

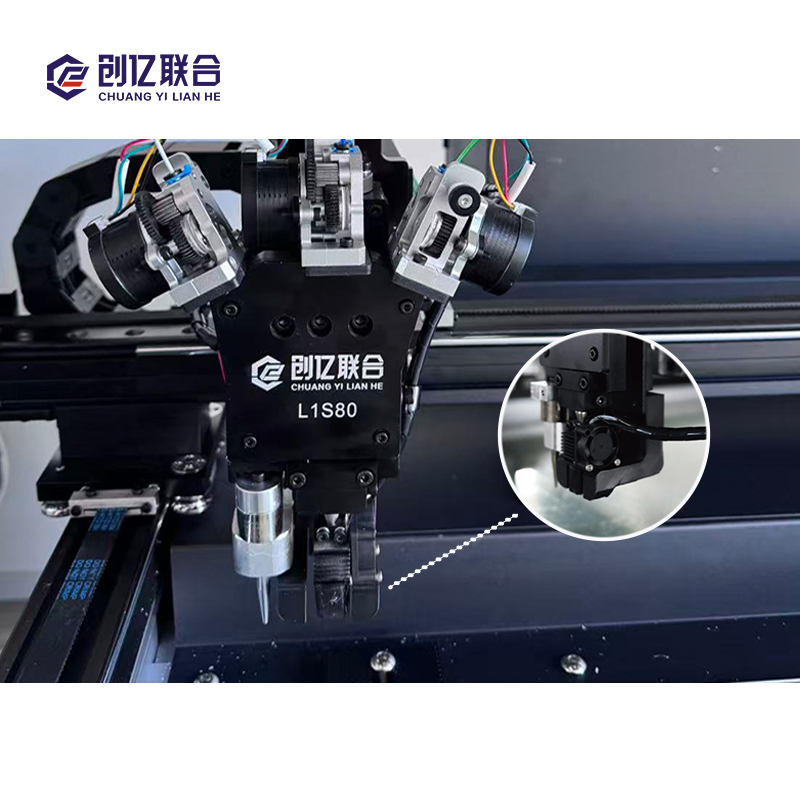

02High-temperature stable nozzle assembly

The all-metal hotend structure consistently supports operating temperatures of 260-380°C, making it suitable for high-temperature materials such as PETG, ABS, and more. It ensuresstable extrusion during long-term mass production without clogging or leaking. The coldend of the nozzle features a dual-ball-bearing fan structure that improves heat dissipationefficiency and prevents heat creep caused by upward thermal conduction. It maintainsconsistent cooling and avoids clogging even during extended operation - ideal for 7x24 continuous printing

03Independent temperature-controlled heating module

The temperature difference across the entire heated bed is controlled within ±3°C. Compared to ordinary heated beds, the advantages are:

1. No warping at the edges of printed shells
2. Significantly improved printing success rat

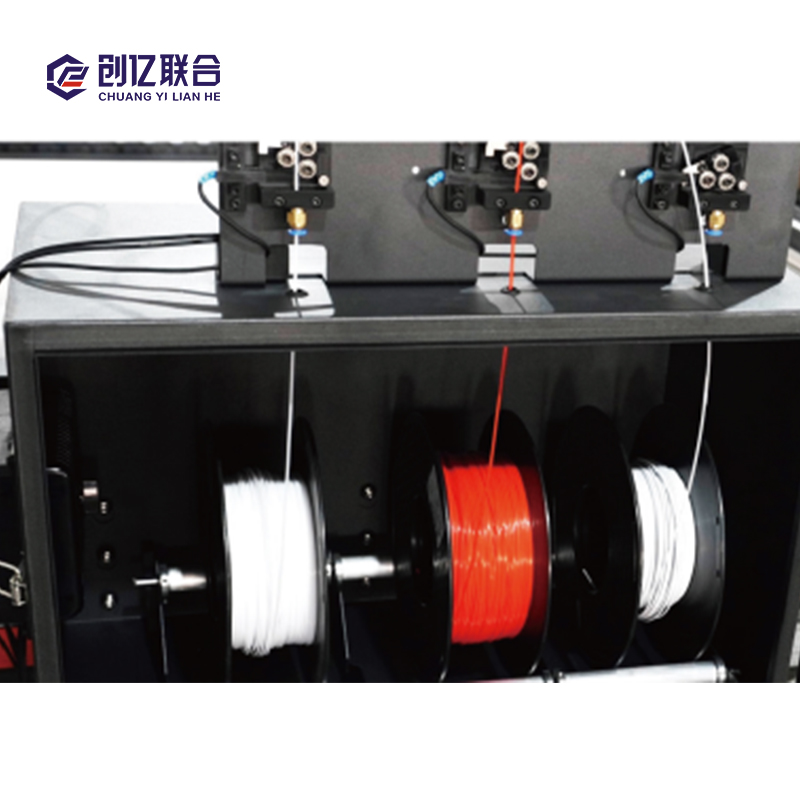

   04Active dehumidification module

   The built-in active dehumidificationunit continuously absorbs moisturefrom the air, keeping the filament in low-humidity state throughout theprintingprocess. For hygroscopicmaterials,iteffectivelypreventsissues such as print bubbles, unstablelayer lines, embrittlement, filamentbreakage, and surface hazing. Thesealedmoisture-proofchambercanaccommodate multiple spoolssimultaneously

3.


4.

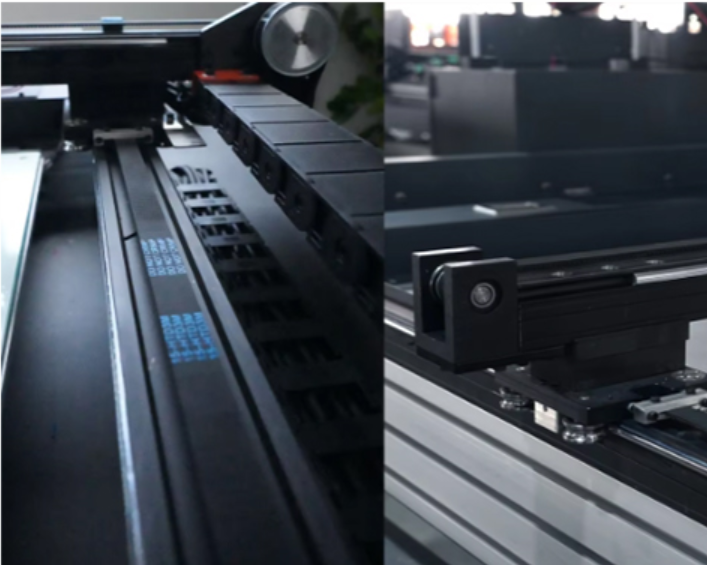

5. 05Industrial-grade motion system

6. The high-rigidity linear guide rails and industrial-grade transmission components maintain precision and repeatability even at high speeds. The Z-axis drive features custom-molded 5mm-thick guide rails.

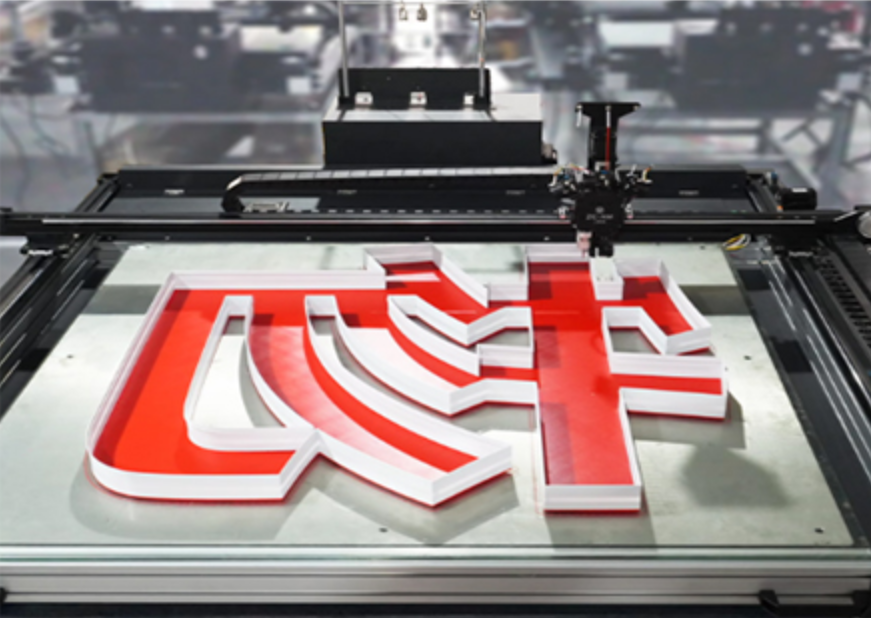

   06Large-format, one-piece printing

   Supports one-piece printing of largeletter shells and signage structures,minimizing seams whileenhancingstrength and surface finish


   printed parts
