CYL1-80PRO Signage 3D Printer for Channel Letters CYL1-80PRO shares identical hardware, printing performance and software system with CYL1-80. The exclusive upgrade is an integrated curing platform built at the bottom of the machine. Printed letter shells can be cured and shaped directly on the printer without separate transfer or external curing equipment. It simplifies production procedures and greatly improves mass production efficiency, perfectly for sign factories with large-volume orders. All core configurations, material compatibility and software functions are fully consistent with CYL1-80.

6 SERVICES/ABOUT US

1.ONE-YEAR WARRANTY                                             2.48 REPAIR SERVICE GUARANTEE

3.LIFETIME SUPPORT                                                   4. AFTER-SALES SERVICE

5.LABOR-FREE FOR REPLACEMENT PART                    6. FREE TRAINING

CORE ADVANTAGES OF THE EQUIPMENT

01 Main control system Upgrade

New-generation mainboard equipped with 64-bit high-speed processor, computing efficiency increased by 3 to 5 times. It maintains stable path calculation during high-speed printing, effectively reducing issues like vibration and layer shifting.

02 High-temperature stable nozzle assembly

All-metal hotend structure supports stable extrusion under sustained 260-380℃ high temperature. Adopted dual-bearing cooling fan to eliminate nozzle clogging and material leakage with excellent heat dissipation, ideal for 24/7 non-stop mass production.

03 Independent temperature control heating module

Independent zoning temperature control heating module, the overall temperature difference of the hot bed is controlled within ±3℃. The printed parts have no edge warpage and firm bottom adhesion.

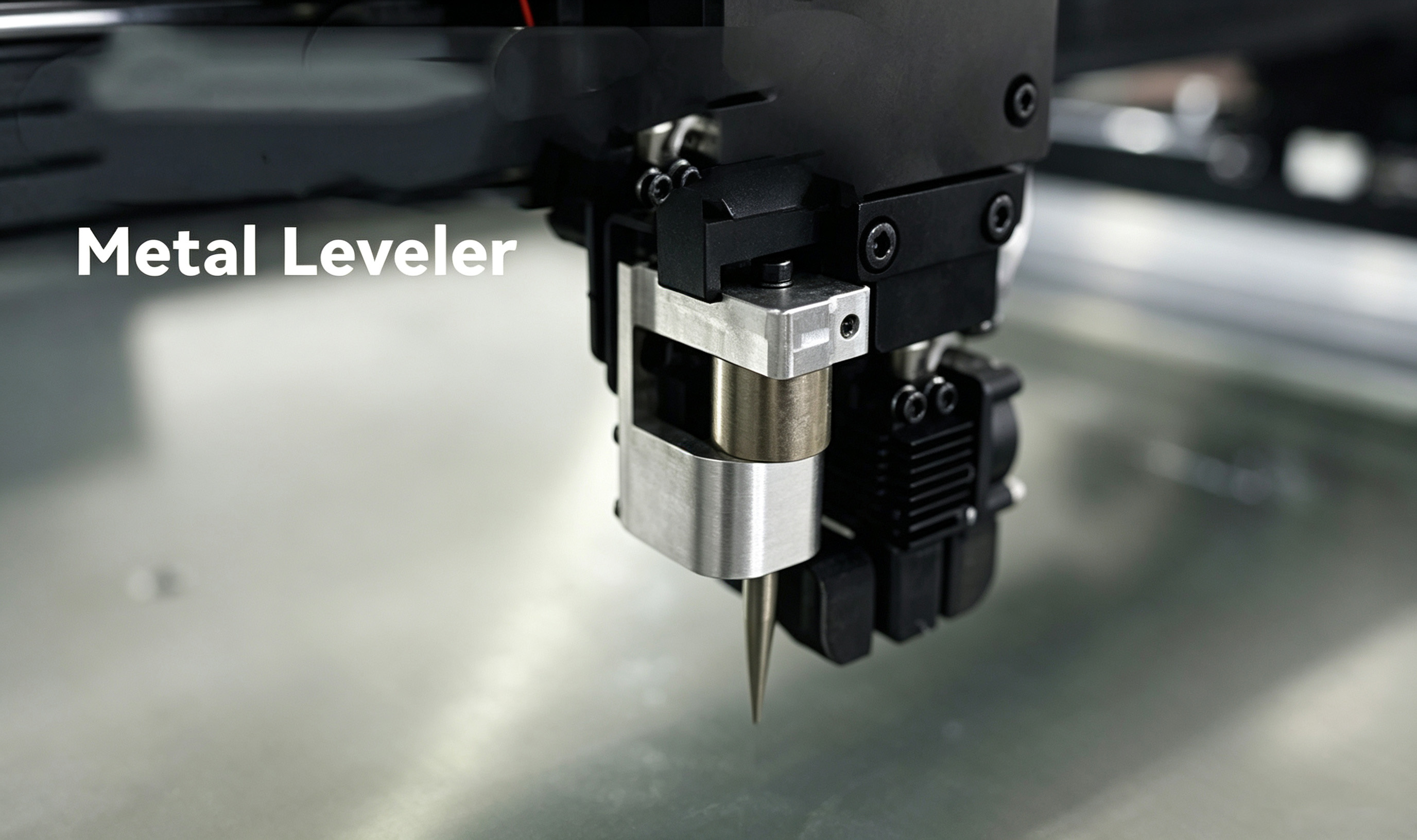

04 All-metal auto leveling structure

Industrial all-metal auto-leveling structure with 5 times enhanced durability. High-precision sensors automatically detect platform height difference, and dual lead screw linear guides ensure high Z-axis precision. It resists deformation after long-term operation with accurate and consistent leveling performance.

05 Nine-point support structure with guide posts at four corners

9-point support structure with four-corner guide posts delivers more uniform stress distribution than conventional 3/4-point supports, preventing platform sagging and deformation during large-format printing.

ADVANTAGES OF OUTDOOR MATERIALS

1.UV aging resistance

2.High-temperature resistance

3.Low shrinkage rate

4.Excellent structural tension

SOFTWARE & OPERATION ADVANTAGES

01 2D Design Import

Supports mainstream advertising vector files including AI, CDR and DXF, with no format conversion required.

02 One-Click 2D to 3D Conversion

Automatically generate 3D channel letter models after importing flat graphic drafts. Wall thickness, letter height and bevel styles are fully customizable.

03 One-Click Print Parameter Presets

Built-in dedicated parameter templates optimized for outdoor PETG advertising filament, eliminating repeated parameter tuning for new operators.

Additional Software Highlights

1. No complex professional 3D modeling software required, perfectly matching traditional sign factory production workflows.
2. Printed letter shells feature sharp edges, clear tiny characters and burr-free surfaces.
3. Uniform wall thickness ensures even light transmission and high structural strength for illuminated signs.
4. Optimized for long-running outdoor PETG printing jobs, delivering stable extrusion with zero nozzle clogging.
5. Supports wireless file transmission and local USB offline storage to reduce messy computer wiring.
6. Real-time print progress monitoring via screen interface, cutting filament waste effectively.
7. Extremely low learning curve; streamlined procedures from design to finished products shorten order lead time.
8. CYL1-80 and CYL1-80PRO both belong to L1 series Signage 3D Printer for Channel Letters. They share identical mainboard, motion system, nozzle, hot bed, software, material compatibility, printing accuracy and speed. The only hardware difference is that CYL1-80PRO is equipped with an integrated curing platform at the bottom.

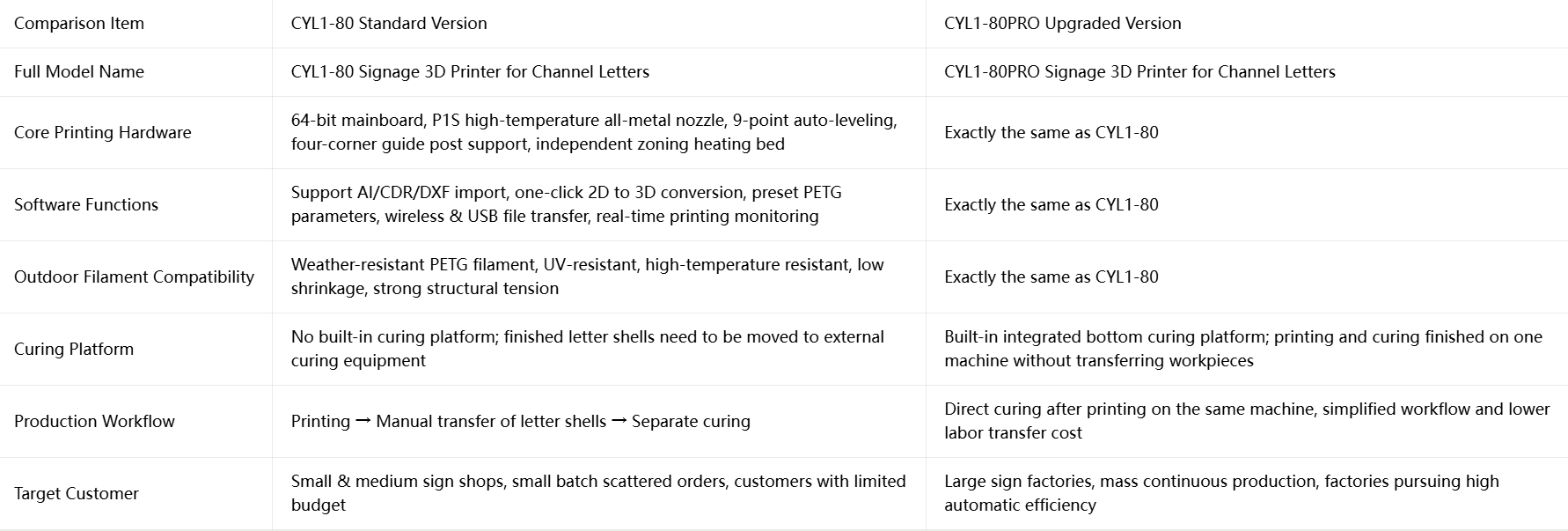

1. Comparison Table
