CY-1000G Combined Grinding & Deburring Machine from Chuang Yi Lian He is a fully automatic integrated processing equipment. It realizes uniform and precise deburring and synchronous rounding of inner & outer contours in one single pass, perfectly matching production lines of laser cutting, CNC stamping and all kinds of CNC sheet metal machining.

Equipped with dual fixing system of turbine vacuum adsorption and magnetic attraction, it firmly holds bent and special-shaped metal plates. The anti-clog vacuum design avoids pressure loss, while magnetic fixing mode drastically cuts power consumption for energy-saving and eco-friendly production. Adopting PLC touch screen intelligent control system, the machine features simple operation and adjustable grinding removal volume. It supports universal abrasive belts and grinding rollers available on the market, and customized imported grinding wheels are optional to meet high-precision processing requirements of special workpieces. A dust collector interface is reserved on the machine, which can connect independent dust removal cabinet or factory central dust extraction system to suck dust and metal scraps thoroughly for clean and safe operation. The machine removes welding slag and oxide scale on workpiece surfaces, and eliminates burrs on plate surfaces, holes and all internal & external contours at one time. It is compatible with carbon steel, stainless steel, aluminum, copper and other metal materials. Replacing manual polishing tools such as files and angle grinders with automatic pipeline processing delivers consistent workpiece finish, cuts labor cost and greatly boosts production capacity. We provide complete 6 major after-sales services: 1-year whole machine warranty, 48-hour repair response guarantee, lifetime technical support, full after-sales commitment, free labor for spare parts replacement and free professional operation training, serving as standard high-efficiency equipment for sheet metal finishing.

6 SERVICES/ABOUT US

1.ONE-YEAR WARRANTY                                     2.REPAIR SERVICE GUARANTEE

3.LIFETIME SUPPORT                                           4.AFTER-SALES SERVICE

5.LABOR-FREE FOR REPLACEMENT PART        6.FREE TRAINING

It fits all types of machining processes to achieve flawless, uniform deburring. Compatible with deburring production lines for laser cutting, CNC stamping and other CNC machining processes. Equipped with linear conveying structure, abrasive belt and multiple groups of rotating alternating grinding wheels, the machine can remove burrs on workpiece surfaces, contour edges and hole edges in one pass, while completing consistent even chamfering simultaneously.

CY1000G

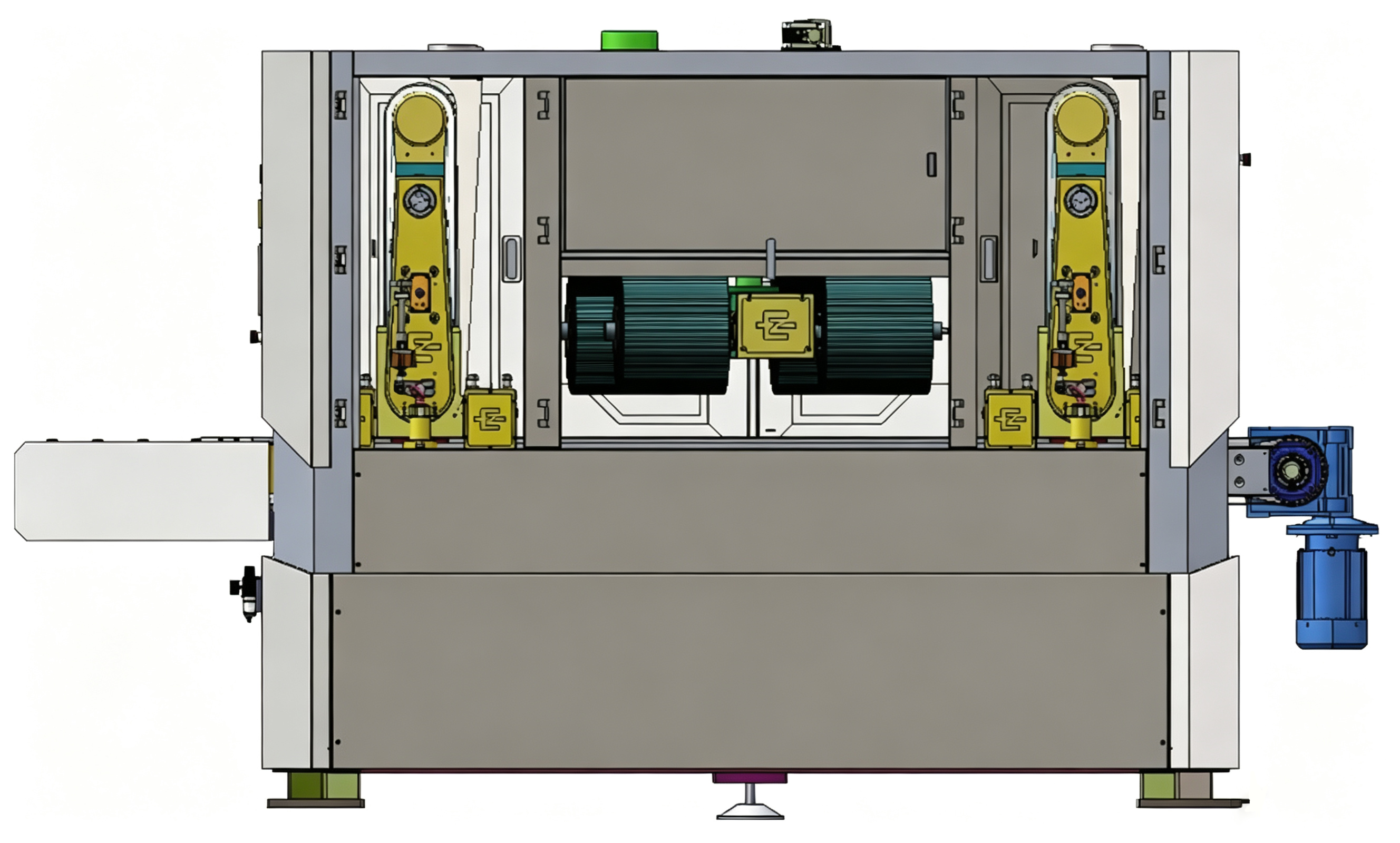

Equipment Working Principle Diagram

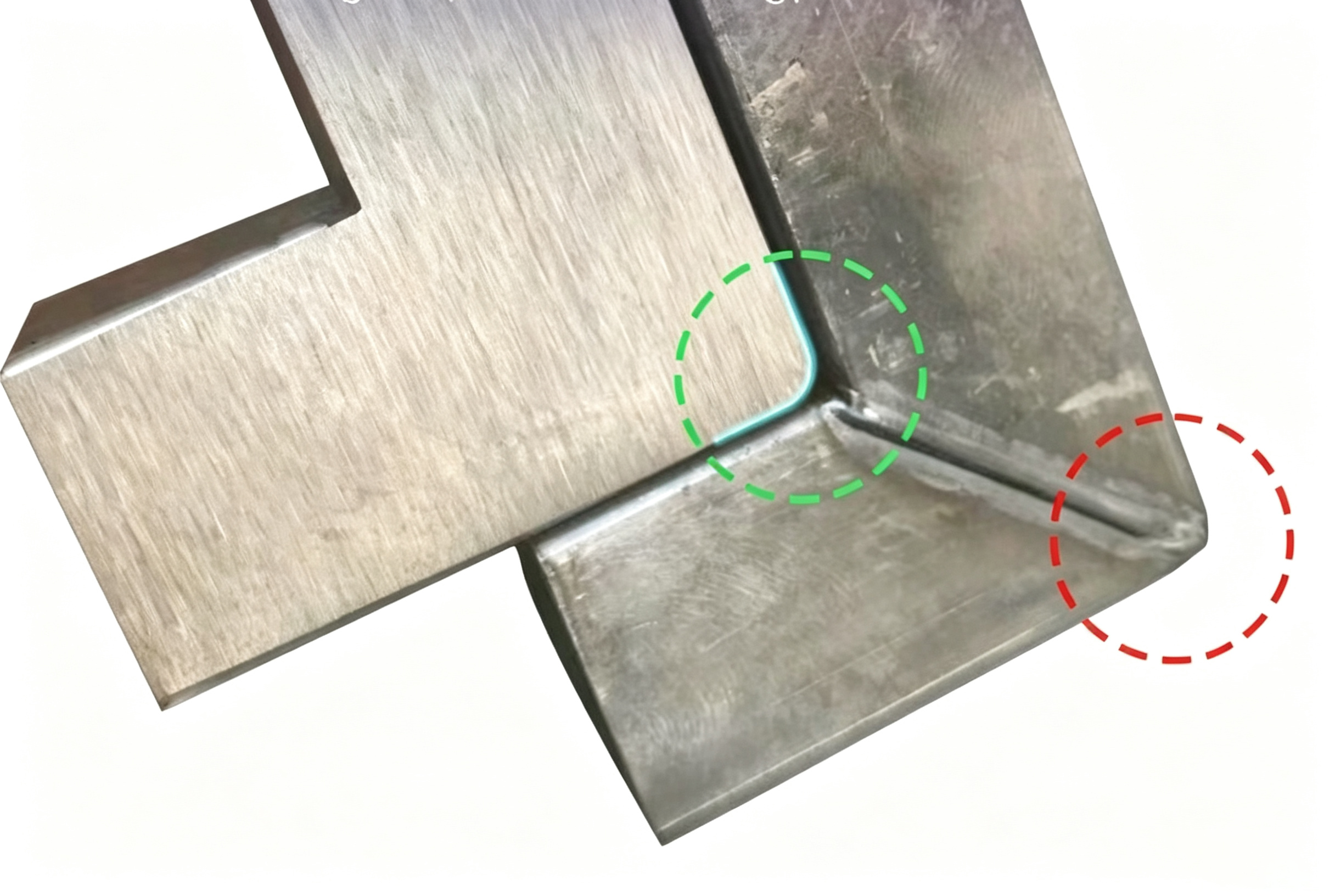

Uniform deburring on inner and outer contours, rounding & slag removal.

The solid slag and oxide skin on the surfaceof the workpiece, remove the burrs evenlyfrom the inner and outer contours, and finishthe rounded corners. It is suitable for burr re-moval in the hole of sheet metal parts such asCNC punching and shearing machine process-ing; burr removal generated after laser cut-ting; slag removal generated byflame cutting or plasma cutting, etc

The monthly effect is reducedto the supply of labor into thepresent.Improve production efficiency

Improve production efficiency Instead ofburrs, use files, scrapers or use electric andpneumatic tools to polish the process, so thatthe workpiece is polished more uniformly;safer, and effectively reduce labor costs andimprove production efficiency.

When polishing with turbinevacuum adsorption technolothe workpiece is firmly
adsorbedAfter bending, the workpiece ond the spe-cial-shaped workplece can olso be adsorbedand palished, which greotly improves the pro-cessing ronge and efficiency, and eliminatesthe loss of pressure or failure of the vacuumadsorption system due to blockoge. There isalso a special magnetic suction system. Whenthe workplece can be fixed with magneticadsorption, it greatly reduces the power con-sumption of the equipment, saves energy andprotects the environment, and maximizes pro-duction costs.

Choosing to adopt magneticadsorption power consumptiwill be greatly reducedFor the product type, choose to adopt magnetic adsorption, ond the power consumptionof the device will be greatly reduced.

Customized imported grindinwheels can meet the specialrequirements of productsThis machine uses generol consumables onthe market, ond can also customize importedgrinding wheels to improve production efficien-cy and meet the special requirements of prod-ucts

The equipment is equipped wa dust collector interface tosuck out the dust and metalchips generated
Ihe equipment is equipped with a dust collec-tor interface to suck out the dust, metal eye-brows and dust generated by the equipmentduring the working process. You can choose touse a separate dust collector device or connectthe existing equipment of the factory.

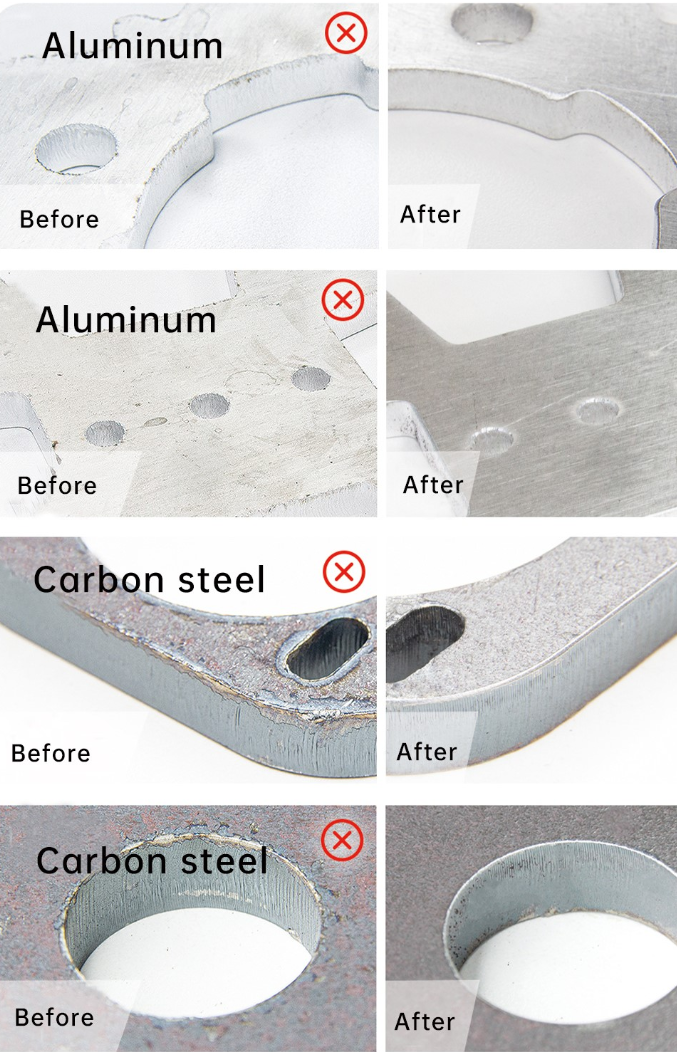

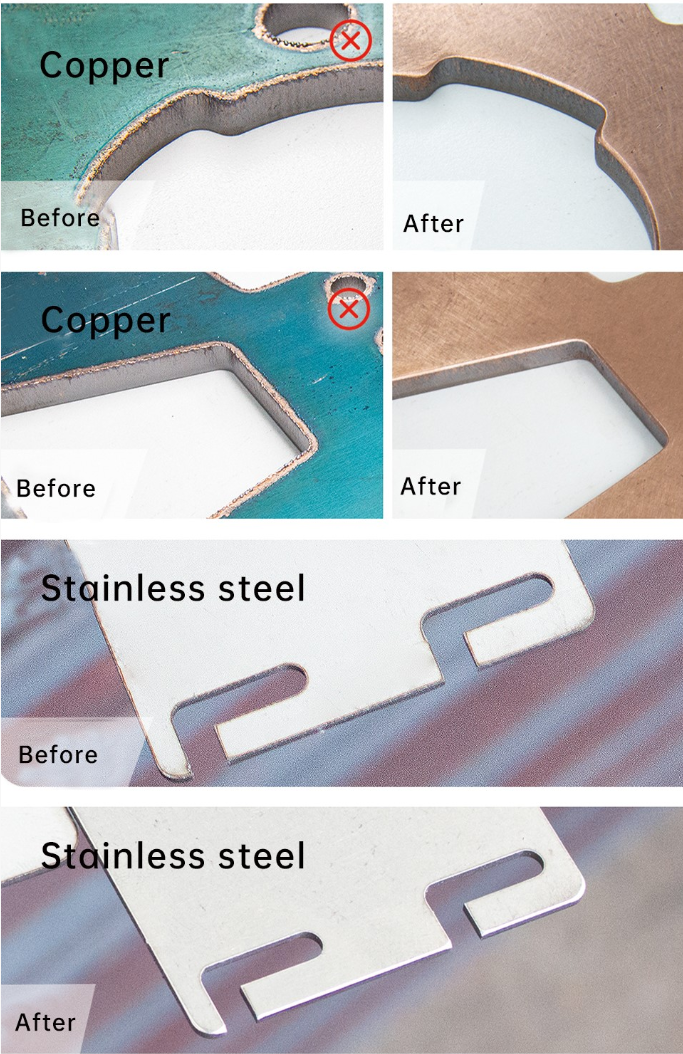

EFFECT DEMONSTRATION
