Product Information

  • Project Name : Deburring Integrated Machine...
  • Category : Deburring Machine/Sanding Machine
  • Complete Date : 2026-07-13

CY-1000S Sanding & Deburring Integrated Machine

Chuangyi Lianhe CY-1000S sanding and deburring integrated machine adopts wide abrasive belt plus universal rotary brush structure, equipped with dual fixing modes of turbo vacuum adsorption and magnetic attraction, suitable for all flat sheet metal parts processed by laser cutting and CNC punching. The machine can remove slag, burrs and oxide layers in one pass, realize uniform edge rounding, as well as hairline and snow pattern brushing polishing, delivering consistent surface finishing with single feeding. It processes sheets from 0.5mm to 6mm thickness, fitted with variable frequency spindle and customizable imported abrasive wheels, reserved dust collector interface to connect dust removal equipment. Complete after-sales service is provided, including 1-year warranty, lifetime technical support, free parts replacement and professional training. Replacing manual grinding with automatic processing greatly cuts labor cost, improves machining uniformity and production efficiency. Widely used in stainless steel, carbon steel, galvanized steel, aluminum and copper workpieces for cabinets, kitchenware, elevators, doors & windows, distribution boxes and other metal products.

6 SERVICES/ABOUT US

1.ONE-YEAR WARRANTY                                     2.REPAIR SERVICE GUARANTEE

3.LIFETIME SUPPORT                                           4.AFTER-SALES SERVICE

5.LABOR-FREE FOR REPLACEMENT PART        6.FREE TRAINING

Equipment Purpose

This system is designed for deburring and edge-finishing productionlines that support laser cutters, CNC punching machines, variousCNC machining, and other mechanical processing operations.Through linear processing combined with abrasive belts and multiplesets of abrasive filament wheels-each rotating on its own axis,orbiting around a common axis, and operating alternately-theequipment achieves truly uniform, single-pass removal of burrs frompart surfaces, profile edges, and hole peripheries, while deliveringconsistent chamfering.

EQUIPMENT WORKING PRINCIPLE DIAGRAM

Wide Abrasive Belt Universal Rotary Brush Combination]This combination is suitable forDeburring the holes in flat or relatively co-planar sheet metalcomponents, such as those processed by CNC punch shearsRemoving burrs resulting from laser cutting

Equipment Performance and Features

Removes stubborn slag and scale from workpiece surfaces, and performs precision deburring and uniform edge rounding on both internal and external contours. Ideal for removing: Burrs from holes in flat or co-planar sheet metal components processed by CNC punch shears. Burrs resulting from laser cutting.

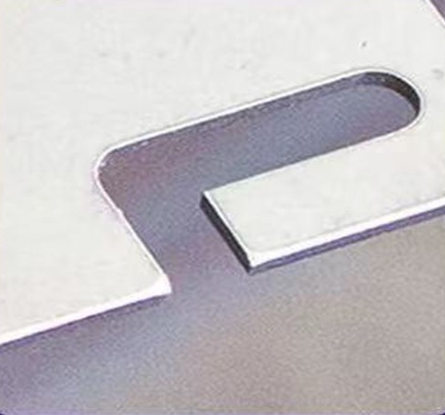

     Before  processing

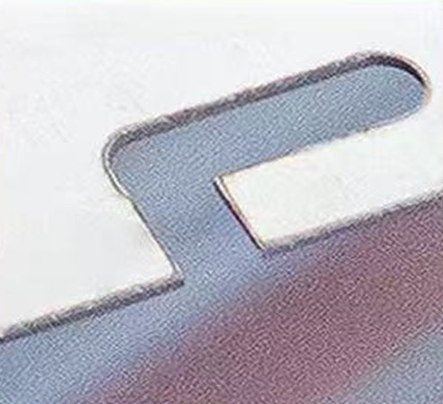

After processing

Boost Production Efficiency

An innovative solution that replaces traditional deburringmethods-such as files, scrapers, or electric/pneumatic grindingtools-with a uniform automated process. This ensures moreconsistent workpiece finishing. enhances operational safety, andsignificantly reduces labor costs while increasing productivity

Turbo Vacuum Adsorption Technology

Workpieces are fimly held in place during grinding. This system reliablyhandles post-bending and irregularly shaped parts, significantlyexpanding processing capabilities and improving efficiency. Itsanti-clogging designprevents pressure loss or system failure. Dual-ModeMagnetic Adsorption SystemWhen workpiece conditions permit magnetic fixation, this auxiliarysystem activates to drastically reduce energy consumption, supportingsustainability and minimizing operating costs.

Customizable Imported Abrasive Wheels

Compatible with standard consumables. Upgrade to custom importedwheels for enhanced efficiency and spedialized requirements

Equipped with a dust collector interface

The machine is equipped with a port for connection to a dust extractionsystem, which removes dust and metal chips generated during operation.It offers the flexibility to use either a dedicated unit or to connect to theplant's existing central system.

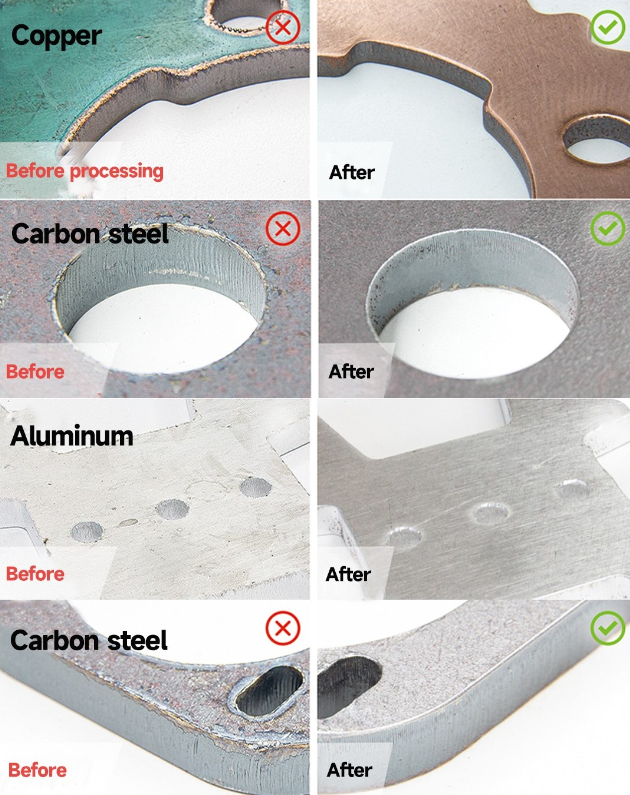

Effect Display

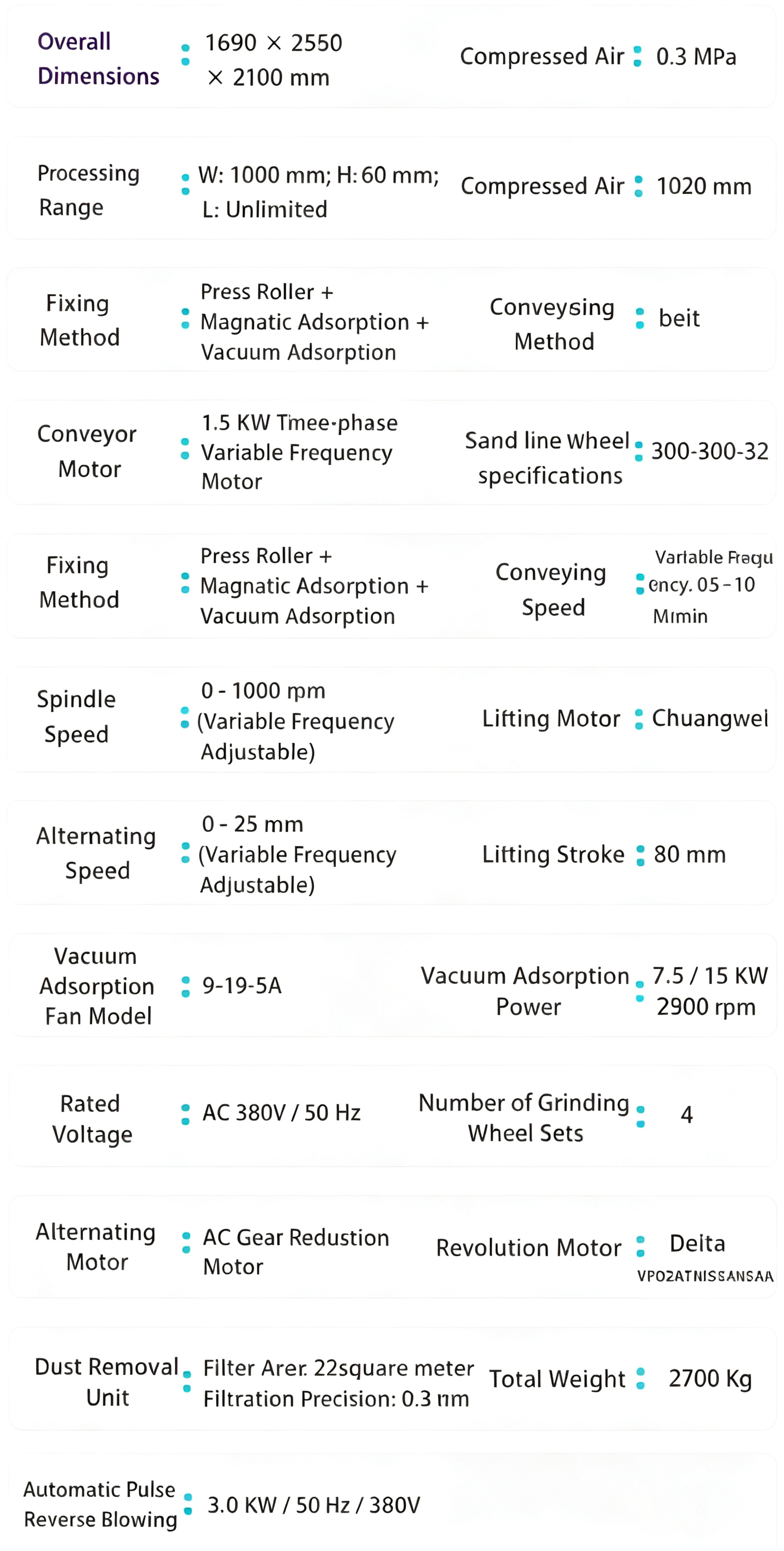

Product Specifications
