This 5-in-1 fiber laser welder with single wire feeding supports welding, cutting, rust removal, seam cleaning and thin plate welding for high efficiency. It is equipped with optional Raycus/Max laser source, constant temperature water chiller, intelligent control system, adjustable welding torch and stable wire feeder. Its welding speed is 2-3 times faster than traditional welders, easy to operate with smooth seams without secondary polishing. Suitable for stainless steel, carbon steel, aluminum and other metals, it is widely applied in door & window, distribution box, hardware, sign letter and sheet metal processing industries. We provide six after-sales services: one-year warranty, 48-hour repair service, lifetime technical support, complete after-sales service, labor-free replacement parts and free operation training.

6 SERVICES/ABOUT US

1.ONE-YEAR WARRANTY                                     2.REPAIR SERVICE GUARANTEE

3.LIFETIME SUPPORT                                           4.AFTER-SALES SERVICE

5.LABOR-FREE FOR REPLACEMENT PART        6.FREE TRAINING

EQUIPMENT CONFIGURATION

1.Laser

— Raycus or Max (optional)

The electro-optical conversion efficiency is higher than 35%, with maintenance-free operation and high cost-effectiveness, far superior to other lasers of the same power

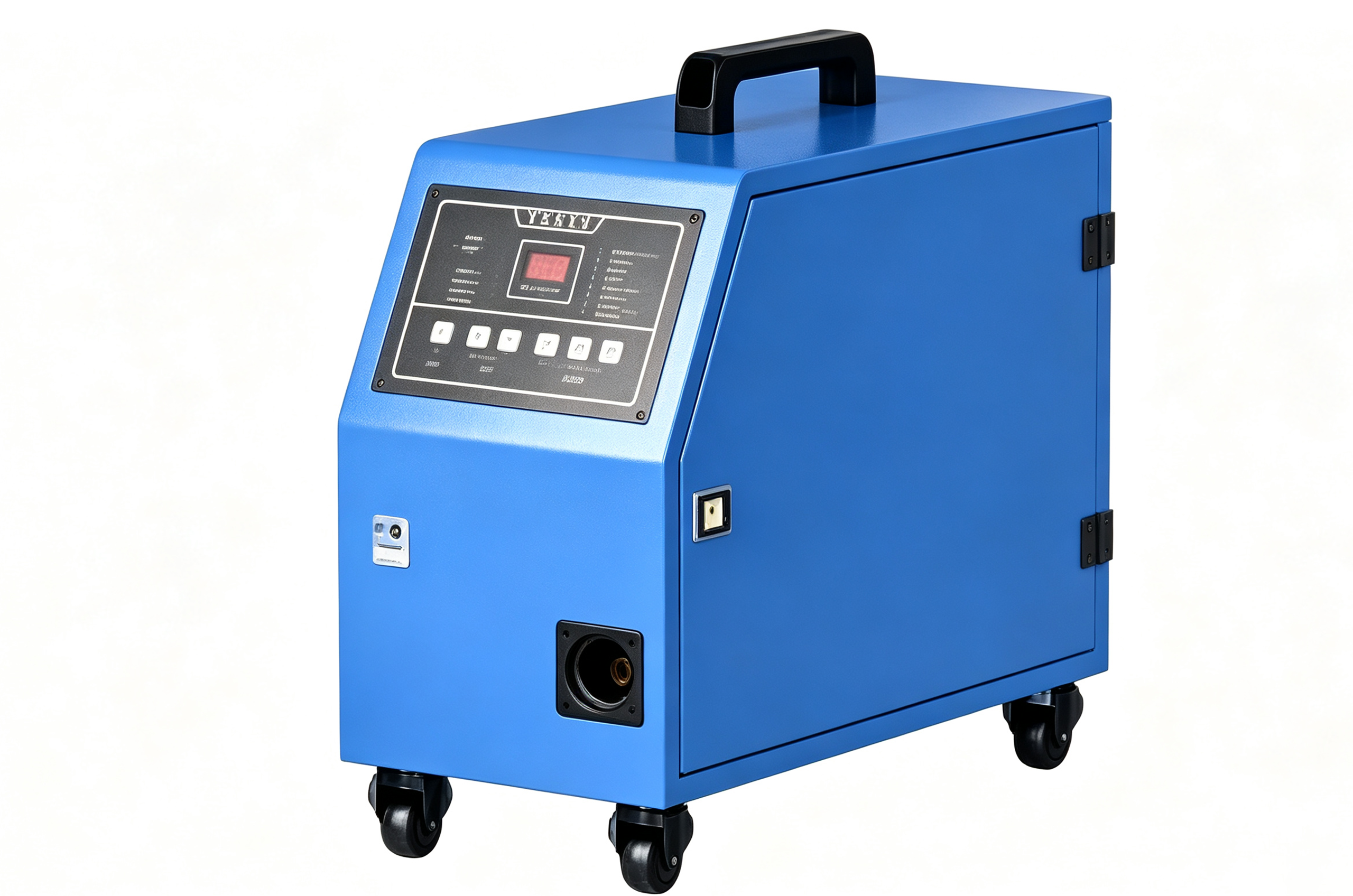

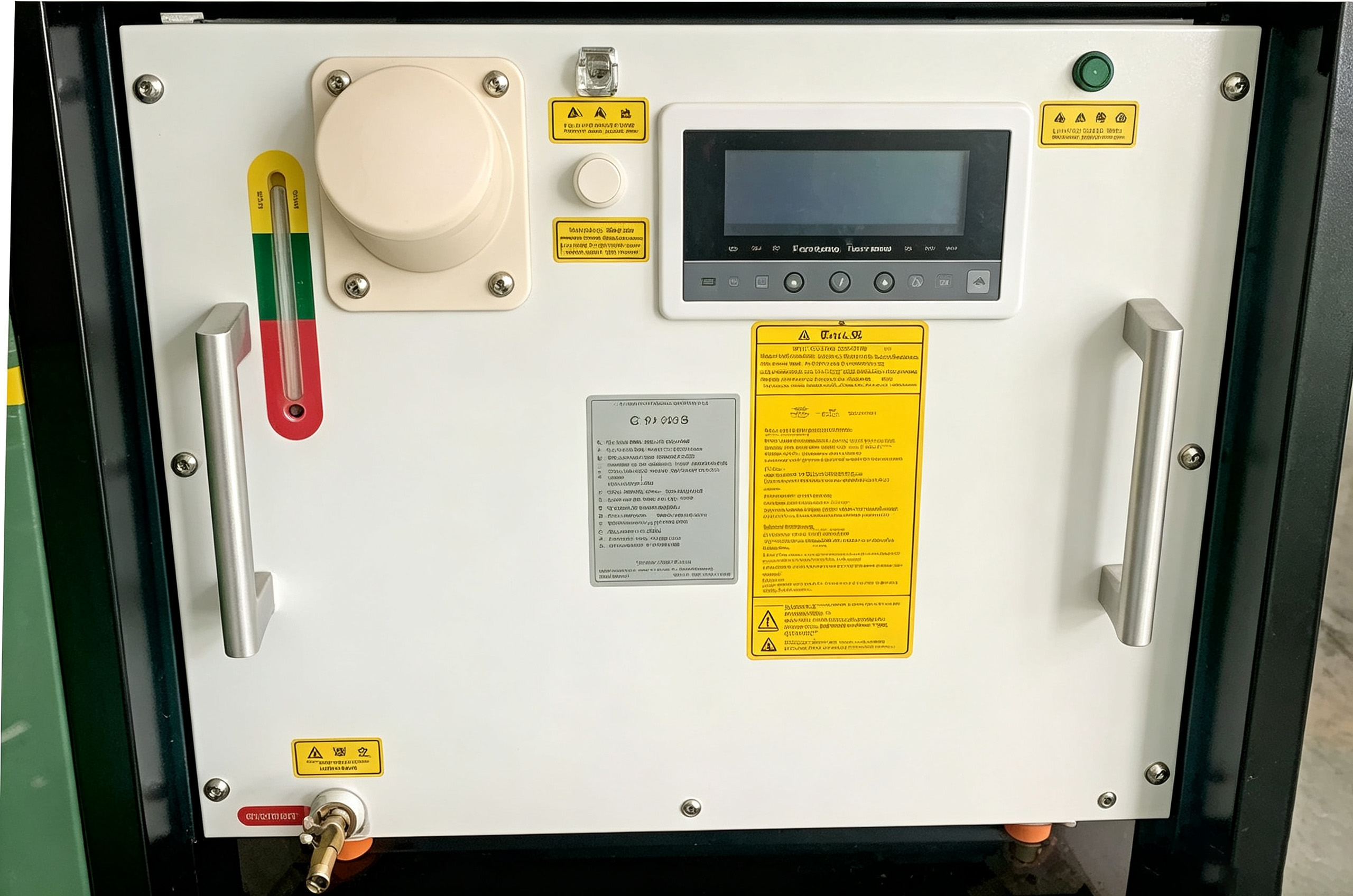

2.Constant Temperature Water Chiller

—Independently Developed

Equipped with a refrigeration compressor, it ensures safe, environmentally friendly, and reliable operation. It is energy-saving, durable, stable in performance, and has a long service life.

3.Control System

—Relfar

Stable performance, simple operation, and precise control

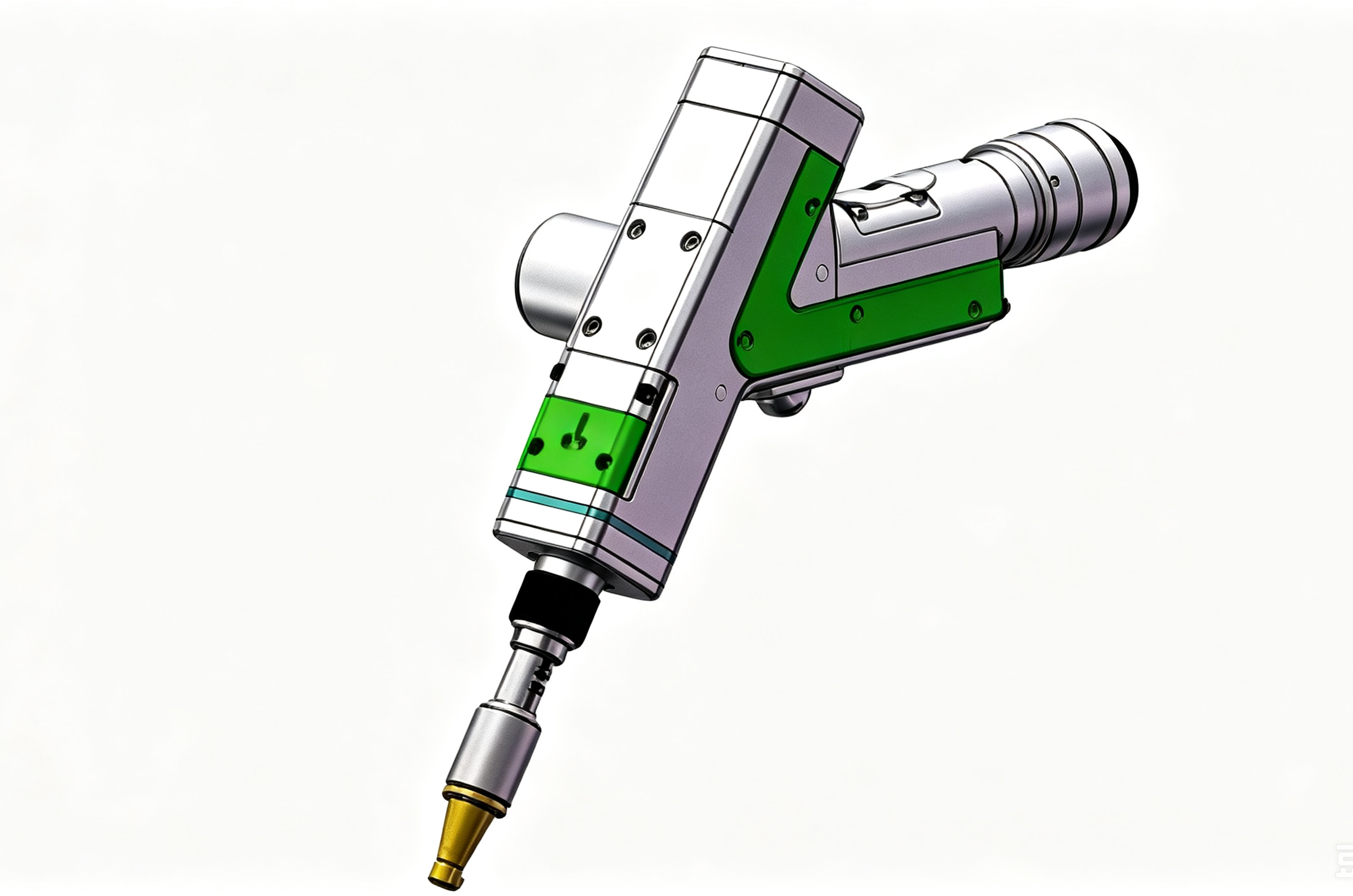

4.Welding Torch

—Relfar
The beam width can be adjusted according to different material requirements and welding dimensions, with support for motor oscillation pattern settings

5.Intelligent Wire Feeder

—Chengxuan
Featuring dual drive, dual axis, and dual wire capabilities, it provides high strength and ensures stable and adjustable wire retraction length, enabling more efficient and fuller welding results.

1.The laser welding head allows welding at any angle, making it suitable for complex weld seams and component welding.

2.High specific energy, low thermal deformation, narrow fusion zone and heat-affected zone, and deep penetration.

3.Since the laser beam is generated by electrical pulses or a continuous laser beam, when it directly reaches the material surface, the heat on the metal surface quickly 4.diffuses into the material, rapidly melting it to form the welding path.

5.Compared with traditional welding, laser welding does not require electrodes, thereby reducing construction time and cost.

6.Capable of welding metal materials inside sealed, fully transparent materials.

7.The laser can be transmitted over long distances using optical fibers, making the process more flexible.

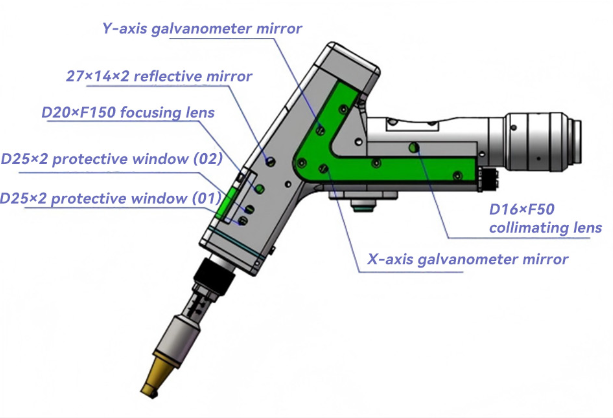

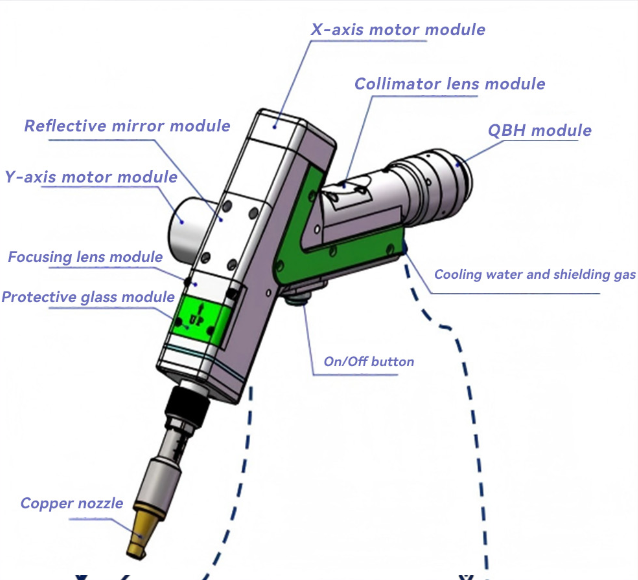

WELDING HEAD STRUCTURE

EQUIPMENT ADVANTAGES

Low consumption, long service life

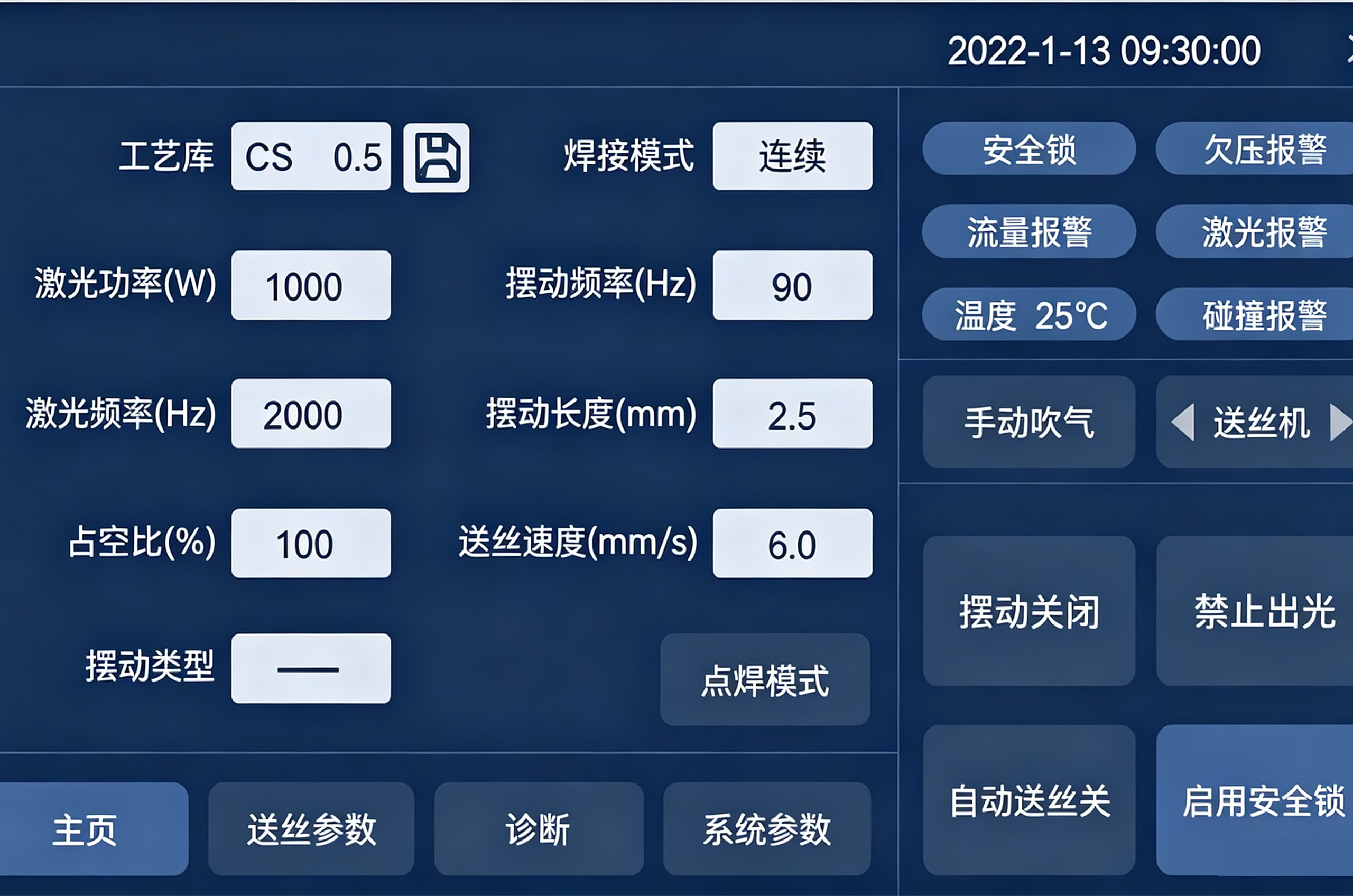

Digital large screen.precise adjustment of all parameters

The intuitive and clear interface design allows even beginners to get up to speed quickly. Real-time synchronization of operating status ensures both precision and practicality, making it suitable for multi-scenario precision welding requirements.

Scope of Application: This laser welding machine is widely used for complex and irregular welding processes such as cabinets, kitchens, stairs and elevators, shelving, ovens, stainless steel doors and windows, distribution boxes, and stainless steel home furnishings. It perfectly replaces traditional argon arc welding for thin stainless steel sheets, iron plates, aluminum plates, and other metal materials.

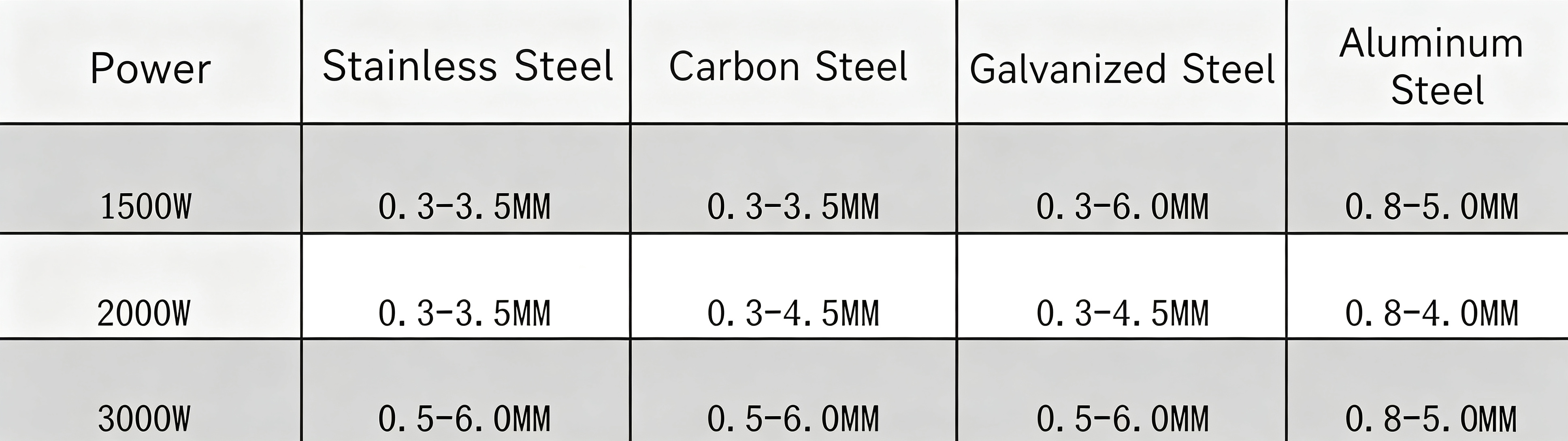

Welding Parameters
