CYM1 Extra Large Frame 3D Printer

Chuang Yi Lian He CYM1 large industrial 3D printer features a huge build volume of 1340×1340×1800mm, with 30% higher printing efficiency for one-piece large workpieces. It is equipped with a 64-bit mainboard, all-metal high-temperature nozzle, zoned constant-temperature hot bed, active dehumidification chamber and industrial servo system, supporting stable 7×24h mass production, compatible with PETG, ABS, PLA, TPU. The matched software supports one-click conversion from AI/CDR/DXF to 3D models for easy operation. Weatherproof PETG filament delivers high-precision seamless prints. We offer full after-sales services including 1-year warranty and free training, ideal for mass production of signage, sculptures, industrial and auto parts.

6 SERVICES/ABOUT US

1.ONE-YEAR WARRANTY                                     2.REPAIR SERVICE GUARANTEE

3.LIFETIME SUPPORT                                           4.AFTER-SALES SERVICE

5.LABOR-FREE FOR REPLACEMENT PART        6.FREE TRAINING

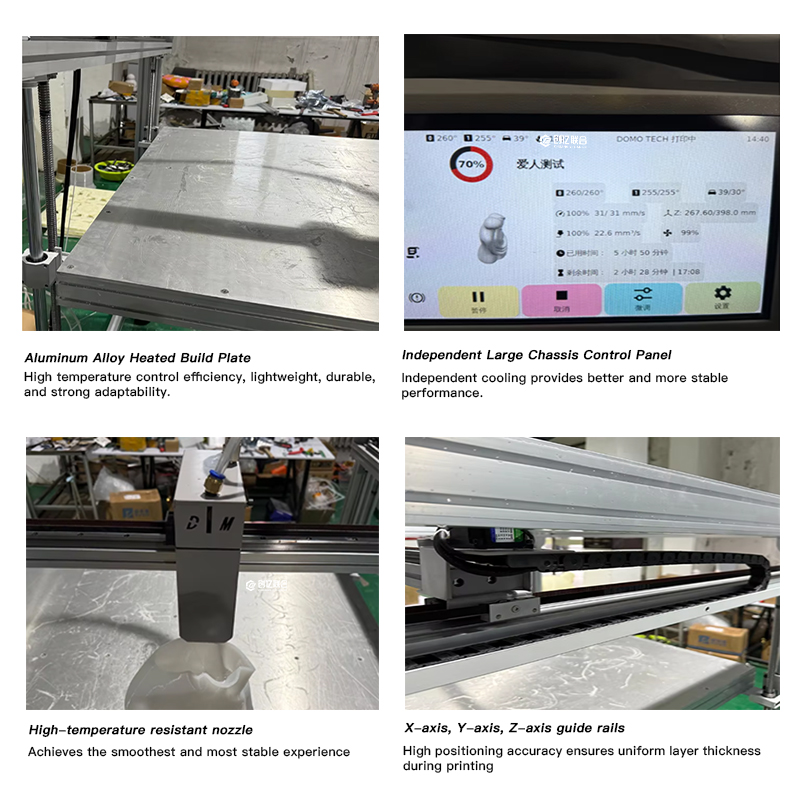

CORE ADVANTAGES OFTHE EQUIPMENT

01Main control system Upgrade

Our next-generation mainboard is built on a 64-bit high-speed processor, delivering 3 to 5 times the computing efficiency compared to the previous model. The system maintains stable path calculation even during high-speed printing, effectively reducing issues such as vibration and layer shifting.


02High-temperature stable nozzle assembly

Adopting an all-metal hotend structure, it consistently supports operating temperatures of 260–380°C and is compatible with high-temperature materials such as PETG and ABS. It ensures stable extrusion during long-term mass production, preventing clogging and material leakage. The cold end of the nozzle features a dual-ball-bearing fan structure, which improves heat dissipation efficiency and prevents heat creep. This enables long-term operation without overheating or clogging, making it suitable for 7×24 hour continuous printing.

03Independent temperature control heating module

The temperature variation across the entire heated bed is controlled within ±3°C. Compared to conventional heated beds, the advantages are reflected in: ・No warping at the edges of printed parts

04All-metal auto leveling structure

The industrial-grade metal structure delivers 5 times greater durability. Built-in high-sensitivity sensors automatically detect tiny height variations on the platform and generate a height compensation model, ensuring stable success for large-area printing. The combination of dual lead screws and linear guides guarantees Z-axis precision, providing the hardware foundation for stable auto leveling performance. Plastic leveling components are prone to deformation and aging, leading to inaccurate leveling. In contrast, the all-metal structure maintains its precision even after years of use.

05 Nine-point support structure with guide posts at four corners

Compared to conventional three-point or four-point support systems, it offers greater stability. The pressure is effectively distributed to ensure uniform force across the entire platform. Even during large-scale printing, the platform remains level without sagging.

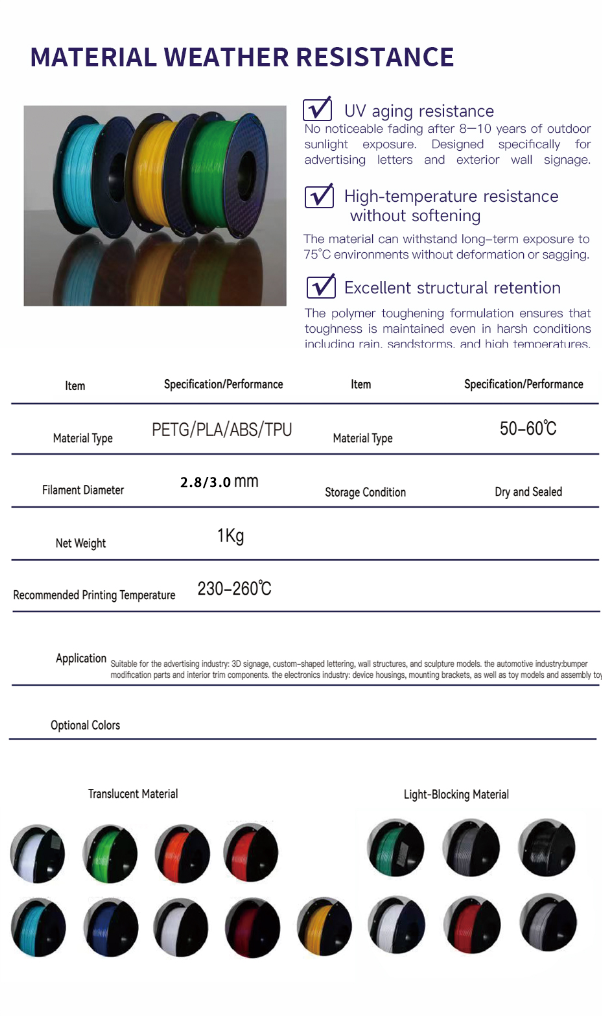

ADVANTAGES OF OUTDOOR MATERIALS

SOFTWARE AND OPERATION ADVANTAGES

01 2D design import

Supports AI, CDR, and DXF vector files, compatible with mainstream sign design software.

02 2D to 3D conversion

Convert 2D vector files into printable 3D letter models. Height, thickness, and edge style are adjustable.

03 Easy print setup

Auto slicing with preset parameters, optimized for PETG sign materials.

SAMPLE DISPLAY
