This CNC press brake adopts rigid integrated frame with overall steel plate welding and stress relief treatment to avoid long-term deformation. Equipped with imported full closed-loop electro-hydraulic servo synchronous control system and GIVI magnetic scale, it delivers stable motion and high bending precision. Standard mechanical deflection compensation on lower worktable ensures consistent bending angles over full length. It is fitted with ET16 CNC controller featuring a 17.3-inch TFT touch screen, supporting CAD import, offline programming, collision detection and remote assistance. Multiple programming modes and optional energy-saving servo pump reduce power consumption by up to 40%. Multi-language support and optional tandem linkage make it ideal for diverse sheet metal bending production.

6 SERVICES/ABOUT US

1.ONE-YEAR WARRANTY                                      2.REPAIR SERVICE GUARANTEE

3.LIFETIME SUPPORT                                           4.AFTER-SALES SERVICE

5.LABOR-FREE FOR REPLACEMENT PART          6.FREE TRAINING、

Performance & Configuration

Machine Tool Performance

◆ Brand-new rigid design with finite element optimization analysis, minimizing the influence of bending deformation on workpiece quality.

◆ Adopts Germany imported full closed-loop electro-hydraulic servo synchronous control system.

Frame Structure

◆ Integrally welded with full steel plates, featuring strong shock resistance.

◆ Stress relief treatment in large tempering furnace ensures excellent stability and non-deformable frame. ◆ The frame is one-time machined by machining center to guarantee the parallelism and perpendicularity of all mounting surfaces. ◆ A C-shaped plate mechanism is arranged at the frame throat to directly detect the distance between upper and lower dies and ensure workpiece precision.

Slider Structure

◆ Up-stroke bending design with low noise and stable operation.

◆ Thickened and widened slider reduces deflection deformation during bending to the minimum. ◆ Universal upper die mounting surface meets maximum clamping requirements of various molds.

Hydraulic System

◆ Equipped with advanced full closed-loop electro-hydraulic servo synchronous control system.

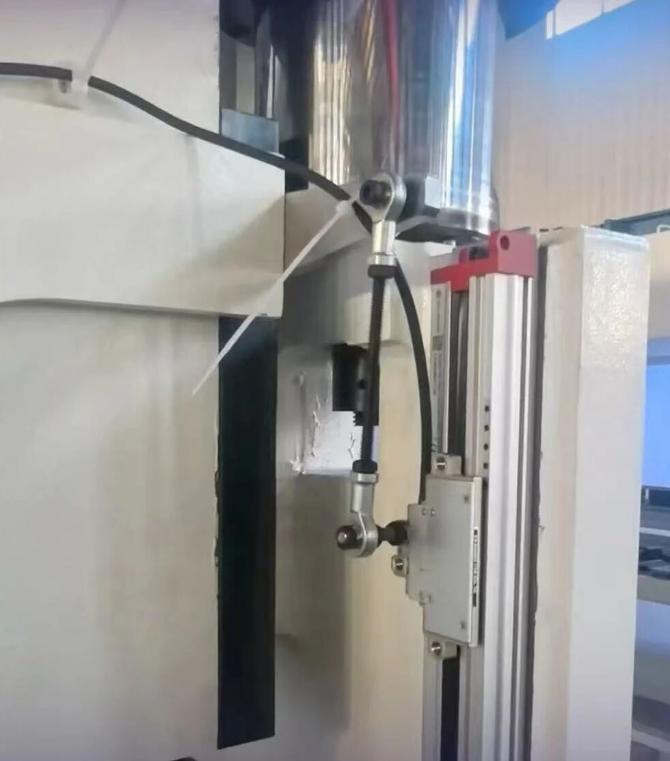

◆ Y1 and Y2 axes can be programmed independently; the machine can work under eccentric load and realize conical bending. ◆ Programmable dwell time at bottom dead center to guarantee precision of different workpieces. ◆ Equipped with GIVI magnetic scale. High-precision guide system and position measuring system realize closed-loop control, adapting to full-length or eccentric load processing. ◆ Oil cylinder seals are supplied by France Skelleran with outstanding sealing performance and long service life. ◆ Imported pipes and joints for hydraulic system with reliable quality and stable performance. ◆ The hydraulic system is provided with overload overflow safety protection.

DEFLECTION COMPENSATION

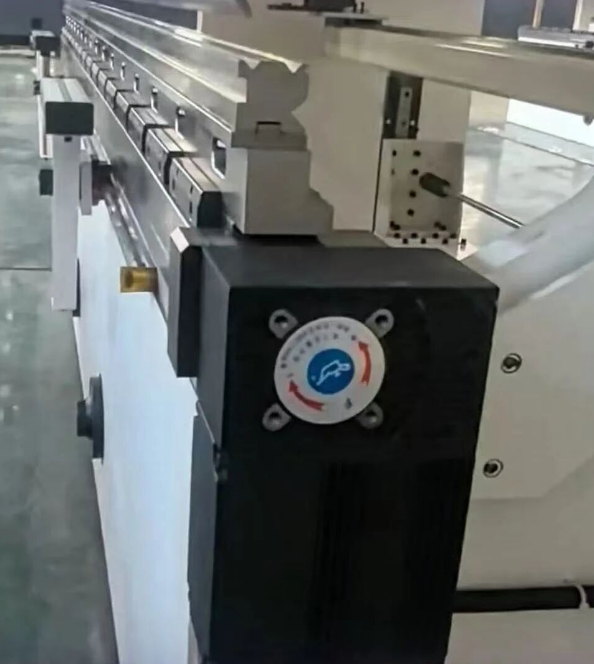

◆ The lower worktable is standard equipped with domestic mechanical deflection compensation device adopting closed-loop compensation control with high precision. The compensation value is automatically calculated and set by the CNC system, ensuring consistent bending angles along the full working length.

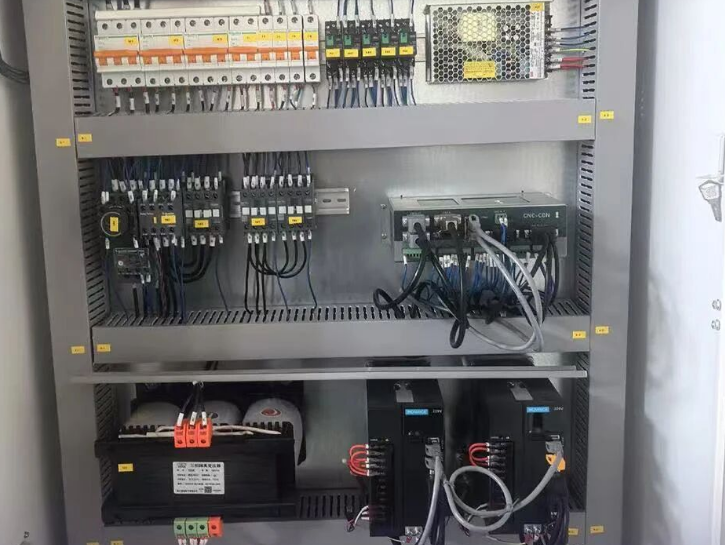

ET16 CNC SYSTEM

KEY INTEGRATION TECHNOLOGY

◆ Standard configuration: 4 1 axes (Y1, Y2, X, R axis and deflection compensation); Z1/Z2/X2/R2 axes are optional.

◆ 17.3-inch high-resolution color TFT touch screen from Taiwan, supporting precise multi-touch. It delivers high definition and delicate display to realize abundant gesture operations. ◆ User-friendly human-machine interface with intuitive icon buttons to simplify operation procedures. It easily completes batch multi-step bending and greatly improves processing convenience. ◆ Graphic programming, automatic calculation of bending sequences, collision detection and bending sequence simulation under production mode. Built-in diagnosis and maintenance functions allow users to conveniently monitor system status, conduct fault diagnosis and maintenance.

NEW FUNCTIONS

It supports 2D drawing programming, offline programming and remote assistance, and provides automatic calculation of bending procedures and collision detection functions.

PRODUCT FEATURES

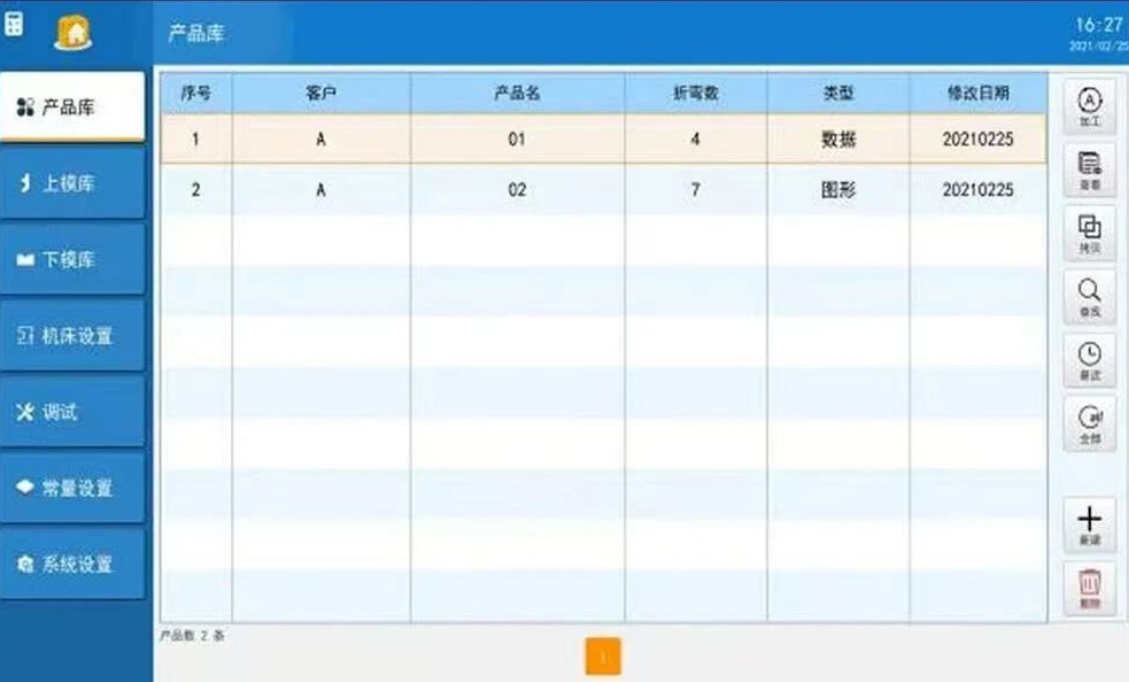

● 17.3-inch high-resolution color TFT touch screen from Taiwan

● Friendly user interface: menu-style interface, multiple UI styles available ● Customized functions: icon text annotation, shortcut operations for bending, tabular display of machining steps ● Data acquisition curve ● CAD file import supported ● Support QR code programming, 2D drawing programming and table programming ● Automatic parameter backup; data import and export available ● Two optional deflection compensation solutions: hydraulic type / motor type ● Advanced Y-axis control algorithm, compatible with closed-loop valves and open-loop valves ● Energy-saving & eco-friendly: matched with servo pump, it adjusts oil supply according to actions to reduce overflow and save power consumption by 40% ● Multi-language support: Chinese, English, Russian, French, German, Korean, Portuguese, Spanish, etc. ● Optional tandem machine linkage ● Offline programming ● Remote assistance ● Automatic data storage via TF card
