The CY3015 fiber laser cutting machine adopts advanced fiber laser technology and rigid gantry dual-side drive structure. Equipped with reliable fiber laser source, professional cutting head and dedicated CNC control system, it delivers high cutting speed, precision and smooth cut edges. It processes carbon steel, stainless steel, aluminum alloy, galvanized sheet and various medium & thin metal plates, widely used in sheet metal, machinery manufacturing, advertising, electrical and automotive industries. The equipment runs stably with low energy consumption, flexible processing and long service life.

6 SERVICES/ABOUT US
1.ONE-YEAR WARRANTY                                      2.REPAIR SERVICE GUARANTEE

3.LIFETIME SUPPORT                                            4.AFTER-SALES SERVICE

5.LABOR-FREE FOR REPLACEMENT PART         6.FREE TRAINING

1. Equipment Introduction

The CY3015 Fiber Laser Cutting Machine adopts the world’s advanced fiber laser technology. An ultra-fine focused laser spot instantly melts and vaporizes the irradiated area of workpieces. Automatic cutting is realized by moving the spot position via the CNC mechanical system.

The CY3015 adopts a gantry structure with dual-side drive matched with gear and rack transmission. It features stable structure, high rigidity and fast operating speed, delivering excellent stability. Key transmission components including reducers, guide rails, gears and racks adopt well-known domestic and imported brands. The integral gantry structure and gear-rack transmission ensure high-speed positioning, rapid dynamic response and reliable stability, representing the development trend of laser cutting equipment.

2. Product Advantages

Equipped with professional laser optical system and imported lenses for stable performance. The efficient, reliable programming & control system is user-friendly and compatible with multiple CAD drawing formats. Automatic cutting path matching reduces processing time.

It features low power consumption and low operation & maintenance costs. No moulds are required, supporting flexible processing for irregular workpieces. High cutting efficiency and superior cutting quality with low noise. The maximum cutting speed for thin sheets reaches 30 meters per minute. Clean cutting edges, minimal deformation and smooth surface finish. High-precision servo motors, guide rails, gears and racks greatly improve running stability while guaranteeing processing efficiency and accuracy.

3. Applicable Materials & Industry Applications

Applicable Industries

Metal cutting, electrical switch manufacturing, aerospace, grain machinery, textile machinery, construction machinery, locomotive manufacturing, agricultural & forestry machinery, elevator manufacturing, special vehicles, home appliance production, tool processing, IT manufacturing, petroleum machinery, food machinery, diamond tool welding, gear welding, metal surface treatment, advertising & decoration, laser job shops and other machinery processing industries.

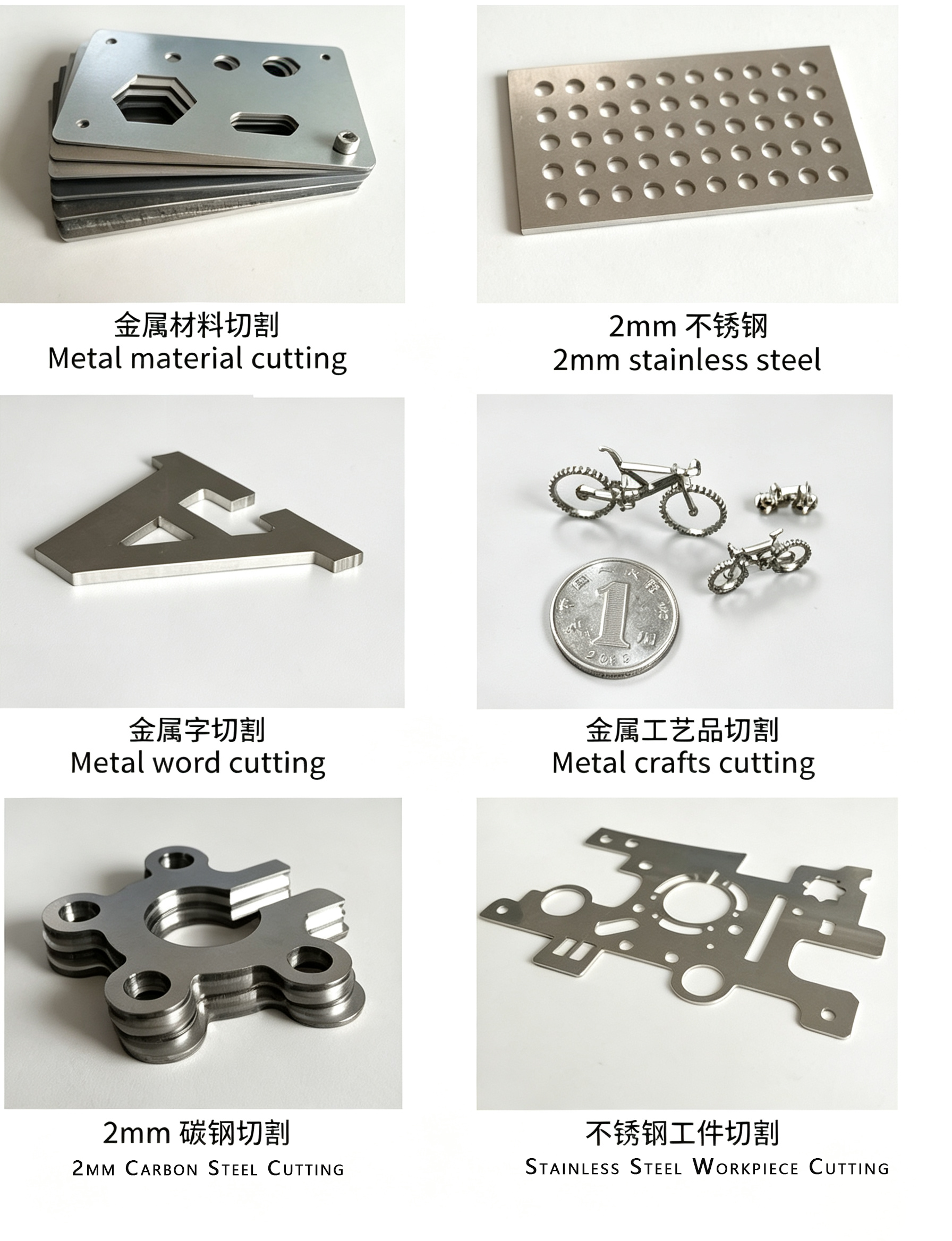

Applicable Materials

Specially designed for various medium & thin metal sheets. It provides premium cutting performance for 0.8–20mm carbon steel, and can also process stainless steel, aluminum alloy, galvanized sheet, electrolytic plate, silicon steel, titanium alloy, aluminum-zinc coated plate and other metal materials.

4. Configuration Parameters

1. Mechanical Motion System

Dual-side drive beam structure, composed of beam body and machine bed. The main structure includes beam driving assembly and height compensation mechanism. Limit switches are installed at both ends of X/Y travel range, assisted by elastic buffer pads on two sides. Transmission components such as reducers, guide rails, gears and racks adopt famous imported & domestic brands.

2. Control System

Special CNC system dedicated to laser cutting with outstanding reliability and stability.

• Professional laser cutting operating system, multi-language interface including Chinese for easy operation
• AC servo drive system and servo motors with reliable performance, fast response and maintenance-free operation
• High-speed surface following function
• Convenient cutting retract function
• Linear & circular interpolation and kerf compensation
• USB and broadband interfaces for convenient data communication and file transmission
• Professional servo control system

3. Advanced Fiber Laser Source

• Excellent beam quality (BPP), constant BPP across full power range, enabling tiny spot size even with long focal length lenses
• Special 1070nm wavelength, unique capability for cutting high-reflection metals such as aluminum, copper and brass
• Electro-optic conversion efficiency >30%, far higher than CO₂ laser (<10%) to greatly cut power consumption
• Laser transmitted via optical fiber with nearly zero transmission loss
• Modular plug-and-play design, compact size for easy installation; no routine maintenance required for laser source and beam transmission system
• Pump source service life >100,000 hours
• Low divergence angle and consistent beam quality; long service life adopting single-emitter semiconductor pump source
• Excellent thermal performance, high electro-optic efficiency, saves water & electricity, supports long-term maintenance-free operation to reduce maintenance cost and boost productivity

4. Laser Cutting Head

Professional fiber laser cutting head with 2-axis follow-up and high-pressure cutting functions. Capacitive sensing height follow-up system realizes stable, automatic cutting height adjustment.

Various matched nozzles fit lenses with almost any focal length. Confocal design allows installing optical lenses of different focal lengths on fixed-length cutting head body. Focal length and nozzle height can be flexibly adjusted, supporting coaxial alignment of lens and nozzle along X-Y axes.

5. Safety Protection System

This high-power laser cutter produces laser radiation which may cause harm to human body, so complete safety protection measures are essential.

Laser Source Protection

Warning labels mark laser output areas to avoid direct laser exposure. Laser housing is fully grounded to prevent electric leakage. Operators must wear certified laser safety goggles, which should be inspected for damage before startup. Never look directly at laser outlet when power is on. Emergency stop button can instantly shut down and cut power to laser source. Three-color indicator lights display real-time equipment operating status.

Transmission Fiber Protection

High-quality imported slide rails, pulleys and limit devices fix and guide laser cable. Transmission fiber is covered by special laser shielding sleeve to prevent laser leakage. Laser leakage protection sensor is installed. Once fiber breakage causes laser leakage, the sensor sends alarm signal to the control system, which immediately stops laser emission and triggers an alert.
