CY-300W YAG table laser welding machine is a professional equipment specially developed for advertising sign letter welding and general metal fabrication. It adopts high-quality military-grade laser crystal and imported IGBT power supply, equipped with a constant-temperature German EBM cooling chiller to guarantee stable 24-hour continuous operation.

The machine features an extra-large integrated worktable compatible with stainless steel, galvanized sheet, titanium alloy and various metal materials. It supports both table welding and flexible 3m fiber handheld welding with 120mm focal torch. Red light positioning and CCD monitoring deliver high-precision welding with minimal heat deformation, smooth weld seams that require no polishing.

With 5x faster welding speed than traditional arc welding, zero consumables and low operating cost, the machine is easy to master for new operators. It is widely applied to advertising letters, sheet metal, kitchenware and hardware processing, featuring noise-free, radiation-free and eco-safe operation.

6 SERVICES/ABOUT US

 Equipment Introduction

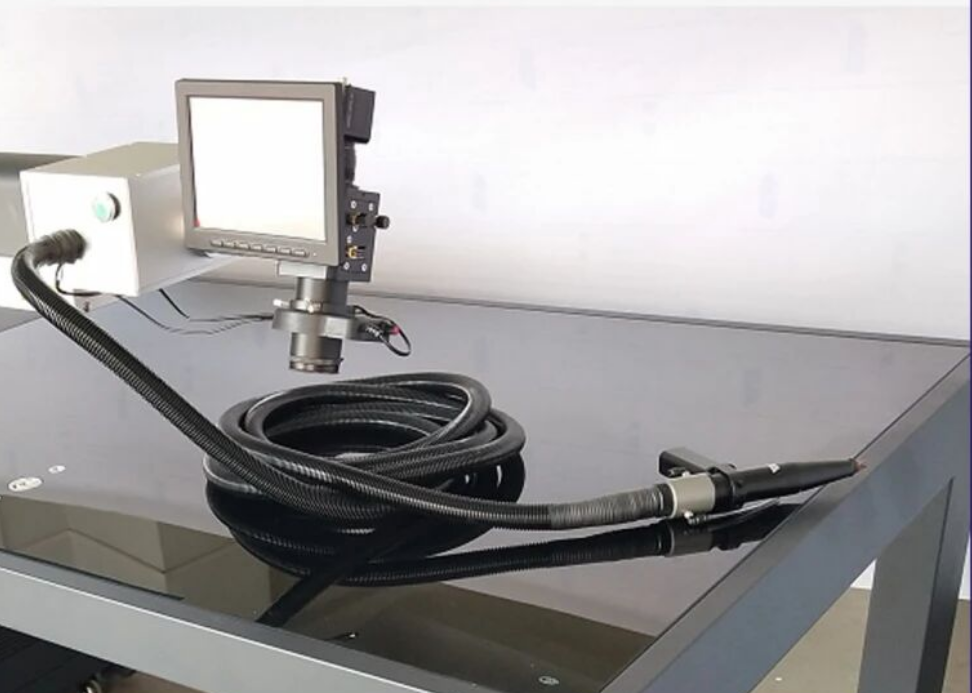

1. YAG fiber transmission laser welding supports one-key startup with easy mode switching. Equipped with a 3-meter flexible fiber cable and customized high-temperature resistant handheld welding torch, it delivers stable performance with a 120mm fixed focal length.
2. Equipped with red light positioning and Y-type nozzle for quick operation. Suitable for various hardware processing, sheet metal, kitchenware, advertising letter fabrication and other metal working applications.

 Table Welding

Customized for advertising sign letter welding

• Extra-large integrated worktable, convenient for welding both large and small letters
• Compatible materials: stainless steel, galvanized sheet, iron plate, titanium alloy and other metals
• Minimal heat-affected zone, zero workpiece deformation, high precision, low operating cost, no consumables required
• Weld joints are firm and smooth without protrusions; no post-polishing needed, saving labor & time with outstanding efficiency and perfect finish

 Machine Performance

1. Laser Crystal: Adopts premium 7*145 laser rods manufactured by top domestic military optical crystal manufacturers, each with LQC inspection certificate. Features high gain, low laser threshold, high output power, smooth welding spots, stable output, excellent thermal conductivity and thermal shock resistance.
2. Laser Power Supply: Configured with high-quality brand power supplies and imported IGBT transistors, which maintain constant pulse xenon lamp current, enable stable high-frequency continuous welding, low attenuation and long service life.
3. High-power Constant-temperature Chiller: Built-in automatic heating & cooling constant temperature control with high precision. Matched with German EBM cooling fans for large air volume and low noise; equipped with filter to remove impurities in cooling water.
4. Controller: Independent high-definition touch screen, supports pulse current adjustment and automatic parameter storage.
5. CCD Microscope Monitor Compatible: Real-time clear view of welding effect for precise operation.

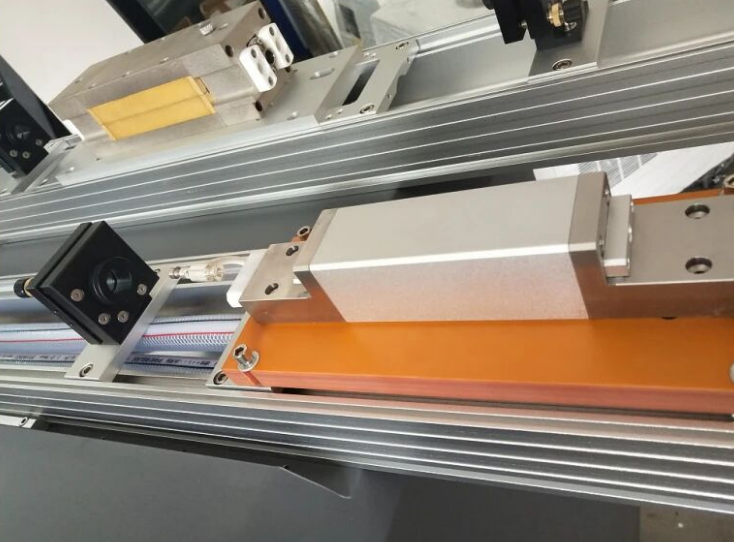

6. Custom Retractable Optical Path with extended focusing lens (F=200mm) for flexible working range.
7. Easy Operation: User-friendly for all operators, ready-to-use after startup, welding efficiency 5 times higher than traditional welding processes.
8. Safe & Eco-friendly: German core technology, noise-free, pollution-free, zero radiation, supports 24-hour non-stop continuous work.
9. Innovative robust mechanical structure, ergonomic design, easy operation and elegant appearance.

Details Display




360W Ceramic Cavity

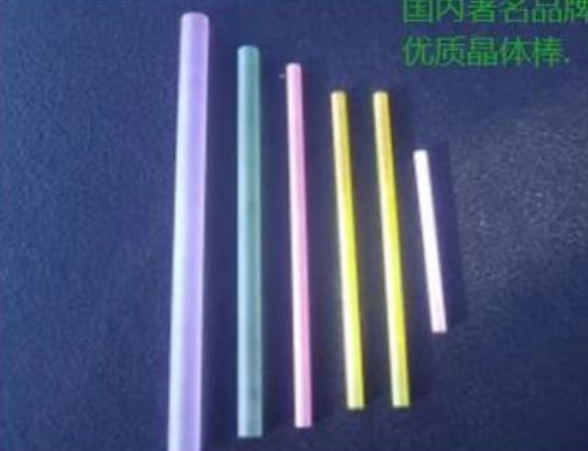

Premium YAG Crystal Rod

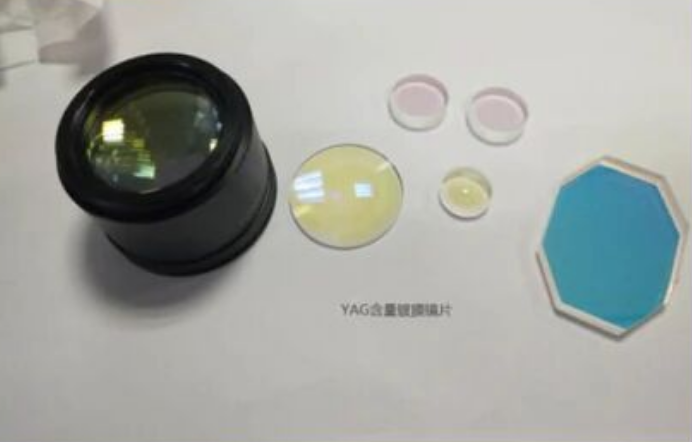

High-reflection Double-coated Lens

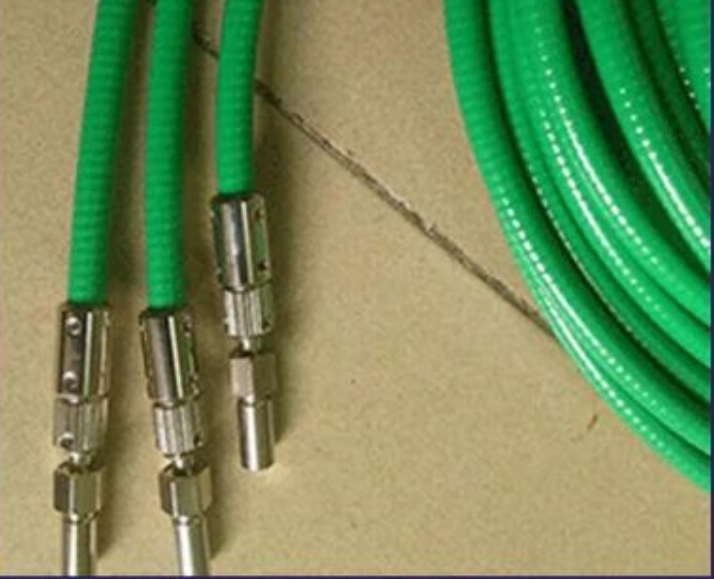

3m Optical Fiber Tube, High-precision Focusing Cavity

The laser head supports convenient fine-tuning. The vertical stroke reaches up to 210mm, equipped with high-precision movable positioning pin.

Exclusive Custom HD LCD Touch Control Screen       Imported Mitsubishi Optical Fiber Tube
The fiber transmission laser welding machine couples high-energy laser beams into optical fibers for long-distance transmission. The beams are collimated into parallel light via collimating lenses and then focused on workpieces for welding. It delivers finer laser spots and exquisite welding seams.

Advantages of Laser Welding

1. Laser welding is compatible with a wide range of materials, featuring fast speed, large penetration depth and minimal workpiece deformation.
2. It delivers delicate and aesthetic welding results with no post-polishing required, effectively cutting production costs.
3. The laser welding machine boasts user-friendly operation. New operators can master it after short-term training, with no lengthy learning period or professional certification needed, greatly reducing labor costs.

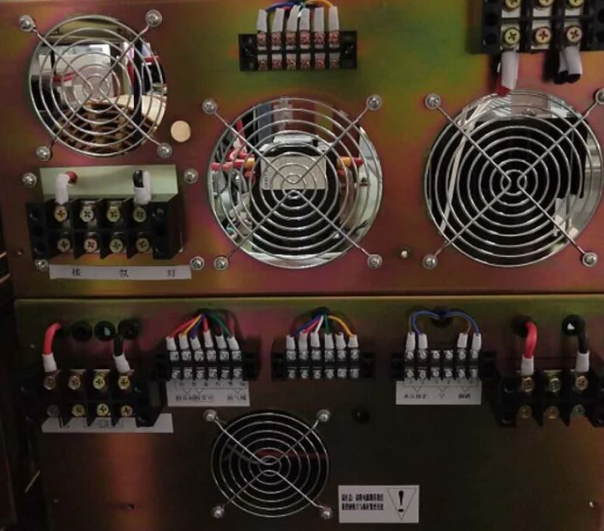

High-configuration Laser Power Supply (Adopting German Technology)

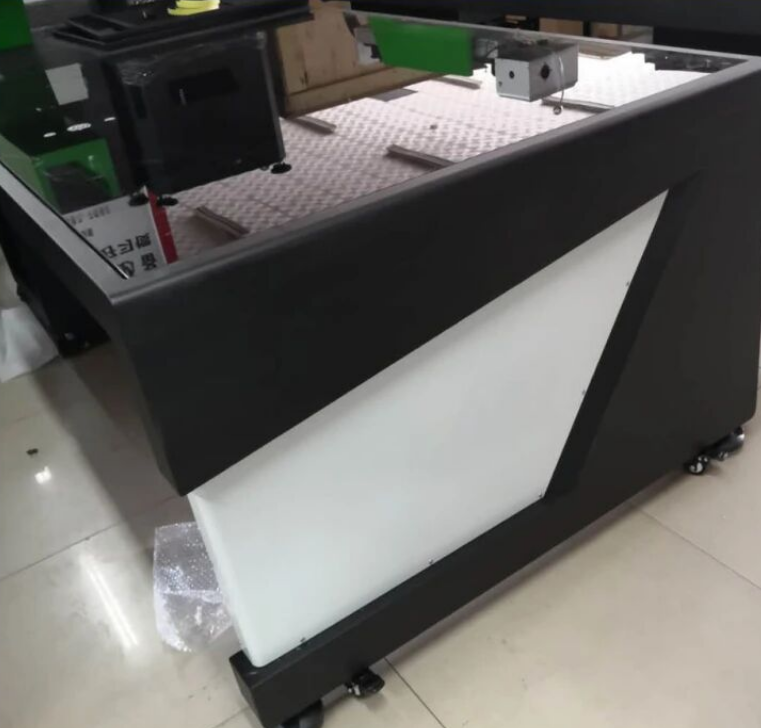

Tabletop* (12mm Thick Tempered Glass Platform) (Equipped with explosion-proof film & paint coating, flat and smooth surface)

Sample Pictures
