CY630 Metal Sanding Machine is a dry dual-stage sanding equipment for metal sheet processing. It adopts coarse fine abrasive belt groups to remove burrs, slag and oxide layers, and complete polishing and wire drawing in one pass. Fitted with standard Chint button control system (customizable PLC touch screen optional), it supports independent operation of two sanding stations for flexible processing. The machine replaces inefficient manual grinding, ensuring uniform finishing, safer operation, lower labor costs and higher throughput. It widely handles workpieces after laser, plasma and CNC punching cutting.

6 SERVICES/ABOUT US
1.ONE-YEAR WARRANTY                                     2.REPAIR SERVICE GUARANTEE

3.LIFETIME SUPPORT                                            4.AFTER-SALES SERVICE

5.LABOR-FREE FOR REPLACEMENT PART          6.FREE TRAINING

Working Principle of Equipment

This is a dry processing machine. Firstly, one set of coarse abrasive belts removes slag particles, large flanging and heavy burrs on workpieces. Then one set of fine abrasive belts polishes workpiece edges to smooth burr-free finish.

Abrasive belts of different grits are interchangeable to adjust surface gloss. The coarse and fine sanding stations can run independently to realize wire drawing, polishing and oxide layer removal for metal sheets.

2. Wide Application Scope

It is suitable for removing inner hole burrs of flat sheet metal processed by CNC punching & shearing, clearing burrs after laser cutting, and eliminating slag generated by flame cutting or plasma cutting.

3. Lower Labor Cost & Higher Production Efficiency

It replaces manual grinding with files, scrapers, electric or pneumatic tools. It delivers more uniform workpiece finishing with higher safety, effectively cutting labor costs and boosting production efficiency.

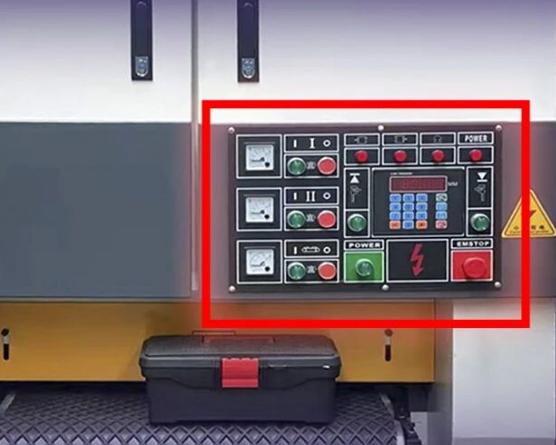

4. Chint Button Control System (Customizable PLC Touch Screen Available)

Equipped with Chint button control system for easy operation. It features digital thickness display and electric fine adjustment, allowing quick and convenient grinding depth setting.

Custom Imported Abrasive Belts Available

Standard abrasives are compatible. Custom imported abrasive belts can be equipped to boost efficiency and meet special processing requirements.

Adjustable Conveyor Table

Variable-frequency conveying speed, with automatic lifting function for the conveyor table.

Stable Feeding

Variable-frequency conveying speed, with automatic lifting function for the conveyor table.

Automatic Belt Deviation Correction

Automatic correction for abrasive belts ensures stable operation and consistent finishing quality.
